Samsung Series 5 Ultrabook Fan Replacement

Written By: Timothy

Difficulty

Easy

Steps

Time Required

10 minutes

Introduction

This is a simple replacement guide for the computer's fan.

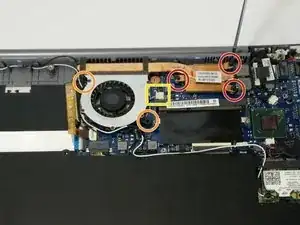

Unscrew the three 2.4 mm screws holding the heat sink in place.
Unscrew the two 4.7 mm screws near the fan.
Unplug the fan from its power supply.

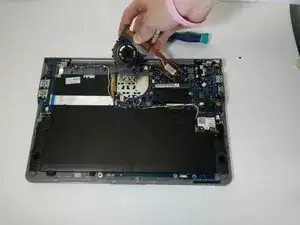

Removal of the heat sink is not necessary. The fan parts from the sink with ease.

Conclusion

To reassemble your device, follow these instructions in reverse order.
