Sanyo Katana Speaker Replacement

Written By: Preston
  • Comments: 0
Sanyo Katana Speaker Replacement

Difficulty

Moderate

Steps

6

Time Required

8 - 10 minutes

Introduction

The speaker is a small, round piece that is easily detachable from the device. However, to access the speaker, various prerequisite steps must be completed.

  1. UVMePUpsdvWBP3sA
    UVMePUpsdvWBP3sA
    EADxxCCD421M3eEE
    SWuDUTBoXuWpVhGt

    • Place thumb on the tab located at the back of the phone and slide button towards your hand and away from phone.

    • While holding down the button, pull cover off with other hand.

  2. labHkTy1wYqApING
    labHkTy1wYqApING
    YSQenKPSAY14FWEA
    RBTQyxhDU62GysJK

    • Use fingers to grip the battery and remove it from the phone.

  3. jpWWElJYHy1NOMsj

    • Using a spudger, remove the four rubber coverings on the lower back plate.

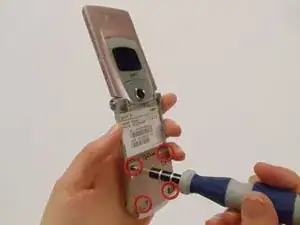

  4. Nu4YPWBktqYO6IvZ
    Nu4YPWBktqYO6IvZ
    KMCAYljmwJSZyGUX
    LEd2eKPtOxXKUimC

    • Using a Tri-wing Y0 screwdriver, remove the four 4.4mm screws securing the back plate.

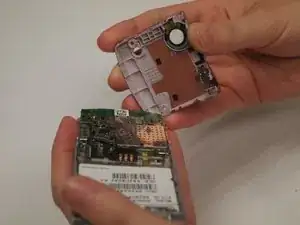

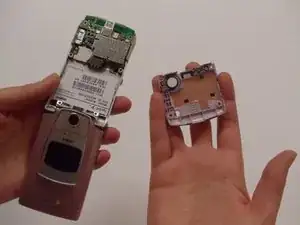

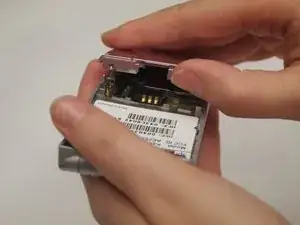

  5. 3obfxL42VgE3OoSE
    3obfxL42VgE3OoSE
    AMvKjIsEP2wCSrK6
    t25jXB3SQB1gXOdM

    • Remove the lower back cover to reveal part of the motherboard and the circular speaker housed in the back cover plate.

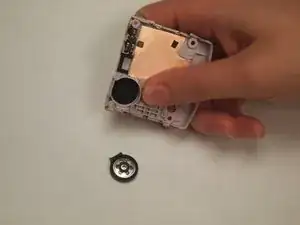

  6. j4LQxorQMhvTpOCD
    j4LQxorQMhvTpOCD
    63FPSIET2StH6Jvm

    • Gently tap the lower back casing on a hard surface to remove the speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
