Sanyo SCP-8100 Camera Replacement

Written By: Paul Truong

Comments: 0

Difficulty

Moderate

Steps

Time Required

20 - 45 minutes

Introduction

This guide will show you how to properly install a camera for the Sanyo SCP-8100. If your device is having trouble taking pictures or it will not take pictures at all, you may need to install a new camera.

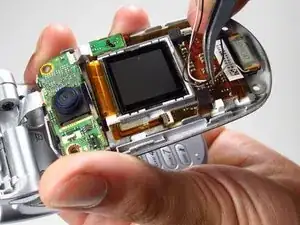

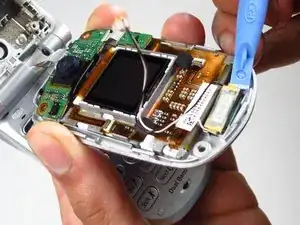

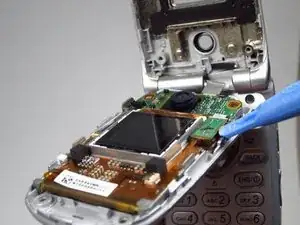

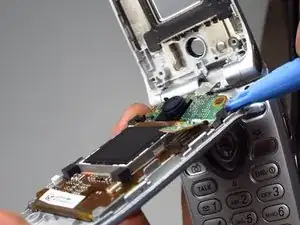

You will need to open the front panel and remove the LCD board in order to get to the camera piece.

Tools

Step 1

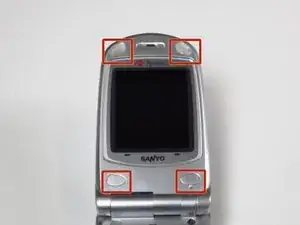

Open the phone and remove the four stickers that hide the four 0.5 mm screws.

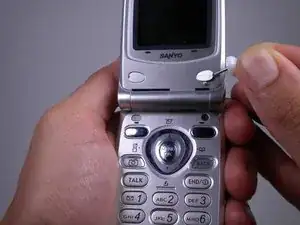

On the bottom two, use a push pin to pull out the stickers.
Do this slowly and gently. You may damage the phone screen or tear the sticker.

Step 2

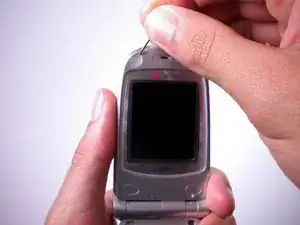

For the top two, use the same push pin and gently pull out the stickers.
These are a bit harder to pull out, so you might need to use more force. However, be gentle or else you may tear the rubber off of the sticker instead of the whole plug.

Step 3

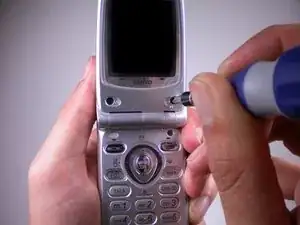

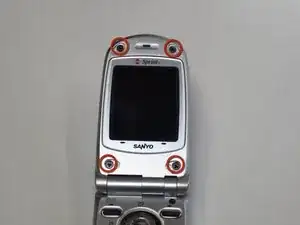

Use the Tri-Wing Y1 screwdriver to unscrew the now uncovered four 0.5 mm screws.

Step 4

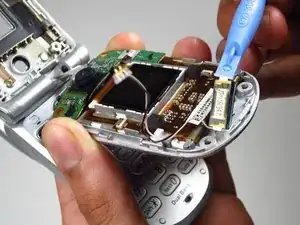

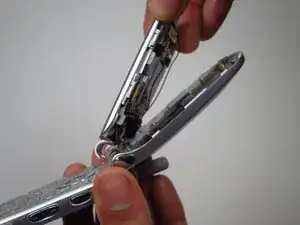

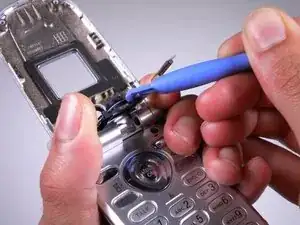

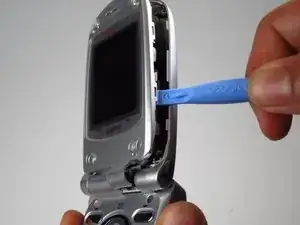

Use the opening tool to pry open the front panel.
You might need to use some force. If it won't budge, try the other side of the panel. You may need to pry open more than one spot to get it completely open.
Don't completely remove the panel, it is still connected to the phone.
