Sceptre X9 Komodo VII Speakers Replacement

Place the monitor face down.

Remove the four 11.5mm screws with a #2 Phillips screwdriver.

Remove the stand by pulling it out.

Remove two 11.5mm screws with a #2 Phillips screwdriver.

Remove the plastic bar.

Using a #2 Phillips screwdriver, remove the six 7mm screws at the circled locations.

Pry the monitor using the plastic opening tool to release the clips holding the cover on.

Once all the clips have been released, remove the cover by pulling it up.

Using the #2 Phillips screwdriver, remove the one 6mm screw.

Unplug the indicated cable by pulling on the base.

Slide the cover toward the top of the monitor.

Remove the cover.

Disconnect the two connectors to the speakers by gently pulling on the hard plastic straight up.

Carefully peel the tape from the board.

Flip the monitor so the screen is facing you.

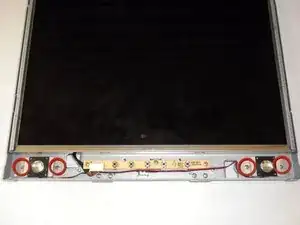

Using Phillips #2 screwdriver remove the four 6.25 mm screws securing the speakers:

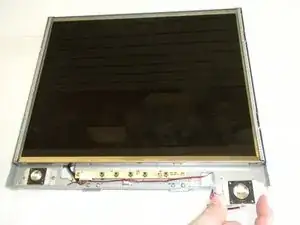

Carefully lift the speakers up.
