Sirius Stiletto 2 Scroll Wheel Replacement

Written By: Benjamin Her
  • Comments: 0
Sirius Stiletto 2 Scroll Wheel Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 30 minutes

Introduction

The scroll wheels allows user interact with the device. A scroll wheel that does not work will not allow users to play music or access other features on the device.

  1. 3U1WTZIDp1dsQssM

    • From the back of the device, slide the back panel downwards to unlock the panel.

    • Lift the panel up, exposing the battery.

  2. bUmEOncXHUotWqYb
    bUmEOncXHUotWqYb
    FgjXqSJUWiHSAOjl

    • Pinch the battery from both sides and lift the battery to remove it.

  3. aSjEwMQNYYoQIeLF

    • Unscrew the four 6.68mm (1.43mm diameter) Philips #00 screws.

    • If needed, remove the sticker to see the screws

  4. nBec3oIpYXWVKqrf
    nBec3oIpYXWVKqrf
    CscFWmDJXcIwDTPk

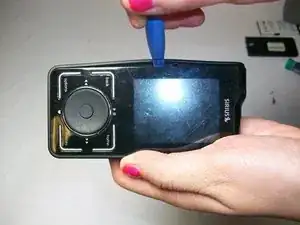

    • Start by using a plastic opening tool to loosen the front cover from the sides.

    • Work your way to the bottom of the cover then the top.

    • Carefully pry the front cover off.

  5. wCJAOxAhBYUhxeMG
    wCJAOxAhBYUhxeMG
    KOKpYGqL5qsUXS1Q

    • Isolate the scroll wheel assembly

    • Gently pry the four metal tabs outwards, away from the scroll pad.

  6. D2mJhrLJRENC4QJg

    • Once the scroll pad has been released, be careful not to drop the center button. This may damage the spring.

Conclusion

To reassemble your device, follow these instructions in reverse order.
