Sony Cyber-shot DSC-W690 Motherboard Replacement

Written By: Will Norris
  • Comments: 0
Sony Cyber-shot DSC-W690 Motherboard Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 30 minutes

Introduction

  1. RKPAxLAWPGZh12Lm

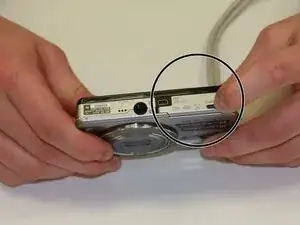

    • Locate the battery door

  2. V1DaKtF4HjHTxHNE

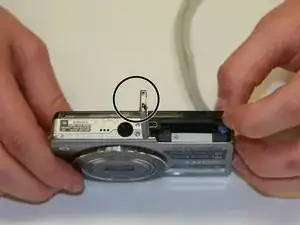

    • Locate and open battery lock by pushing the lid towards the inside and lifting

  3. mmjFxKMYp2Y64xnM
    mmjFxKMYp2Y64xnM
    3wSgasmyFjyX6rkO

    • Remove the battery

  4. eTHZMXO3qMFDHBjR

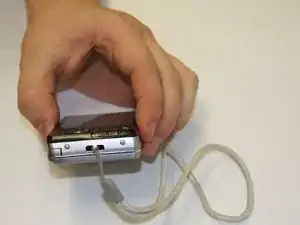

    • Remove the wrist strap off of the camera

  5. cO4JspnwOIQuefXx
    cO4JspnwOIQuefXx
    sLKHIgh3VVICH5La

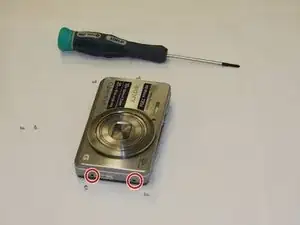

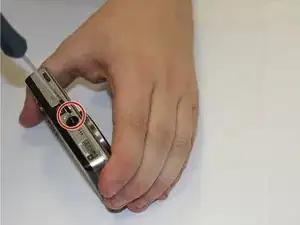

    • With the screwdriver, remove all six 3mm screws on the outside of the camera. To unscrew, insert screw driver into indentation of screw and twist in counterclockwise

    • Keep screws in a safe place

  6. pjOhHNrbkQTMmtfF
    pjOhHNrbkQTMmtfF
    PNOMapTDhnFURavb

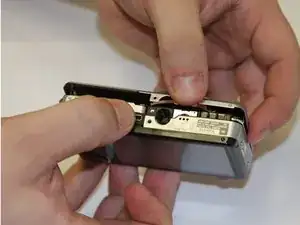

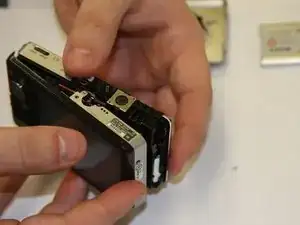

    • Carefully pry the case apart by pulling the front and back sides in opposite directions

  7. 6h6SDLvJGbBHPOUZ

    • Carefully remove and replace the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
