Sony Cyber-shot DSC-W690 Navigation Buttons Circuit board Replacement

Written By: Will Norris
  • Comments: 0
Sony Cyber-shot DSC-W690 Navigation Buttons Circuit board Replacement

Difficulty

Moderate

Steps

9

Time Required

30 - 45 minutes

Introduction

  1. RKPAxLAWPGZh12Lm

    • Locate the battery door

  2. V1DaKtF4HjHTxHNE

    • Locate and open battery lock by pushing the lid towards the inside and lifting

  3. mmjFxKMYp2Y64xnM
    mmjFxKMYp2Y64xnM
    3wSgasmyFjyX6rkO

    • Remove the battery

  4. eTHZMXO3qMFDHBjR

    • Remove the wrist strap off of the camera

  5. cO4JspnwOIQuefXx
    cO4JspnwOIQuefXx
    sLKHIgh3VVICH5La

    • With the screwdriver, remove all six 3mm screws on the outside of the camera. To unscrew, insert screw driver into indentation of screw and twist in counterclockwise

    • Keep screws in a safe place

  6. pjOhHNrbkQTMmtfF
    pjOhHNrbkQTMmtfF
    PNOMapTDhnFURavb

    • Carefully pry the case apart by pulling the front and back sides in opposite directions

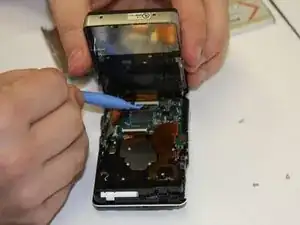

  7. lHoiZlL5GdphNQMJ

    • Use spudger to delicately open wire contact.

  8. UGdLgSxhLA4wfIMB

    • Gently push LCD screen out of back case.

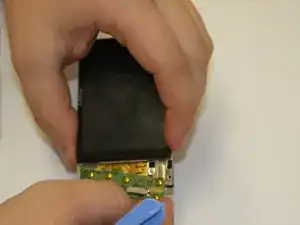

  9. Goo3SBQHjURikbXI

    • Remove and replace the button circuit board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
