Sony Cyber-shot DSC-WX220 Lens Assembly Replacement

Written By: Kate Glazer
  • Comments: 0
Sony Cyber-shot DSC-WX220 Lens Assembly Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

This guide shows how to replace the lens assembly that may not be working properly.

  1. MSD1FfiUuULWGPE4

    • Slide the gray switch from lock to open position.

  2. Fkl4VbJljIiOYBVf
    Fkl4VbJljIiOYBVf
    fiTHTSEcNtMVJDxC

    • Pull down on the blue tab to release the battery.

  3. klUlOMPDXNcSDsfG
    klUlOMPDXNcSDsfG
    igQCDvj2HxpjqUbL
    vGsbYOaY3EBT3RLt

    • Use a PH00 screwdriver to remove the five 3.5 mm screws.

    • Use a PH00 screwdriver to remove the two 2.5 mm screws.

  4. 33nZjriXMxouoBiP
    33nZjriXMxouoBiP
    iBNJOmOh1DSOWNHN

    • Pry apart the case gently using a plastic opening tool.

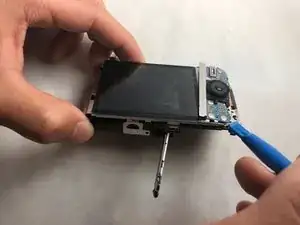

  5. QfNLSdmaGBNDiuEV

    • Pry back the panel to the right of the screen using a plastic opening tool.

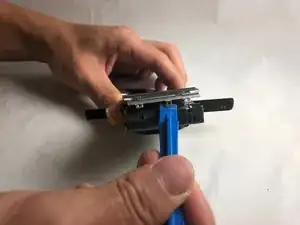

  6. q5f6ZX1sYWYHwMUo

    • Working on the left side of the screen, pry the metal panel off from the motherboard housing using a plastic opening tool.

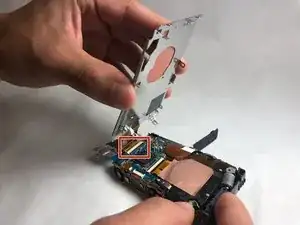

  7. Mtl4RAw2mCDnaMjf

    • Pull out the ZIF cable from the motherboard.

    • When removing the ZIF cable, pull it straight out to avoid damaging the cable.

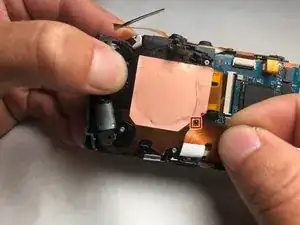

  8. ga4FbGf6gWYC31hK
    ga4FbGf6gWYC31hK
    ej4TUBS5yMtbeVFU

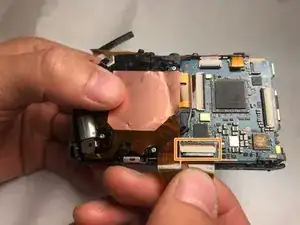

    • Unpin the ZIF cable by lifting the cable towards the top of the camera while pulling up towards yourself.

    • Pull the ZIF cable out.

  9. ORlpBYETjBNYSVob

    • Lift the lens out of the case.

    • Pull out the ZIF cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
