Sony DVP-FX730 Screen Replacement

Written By: Oliver Woolsoncroft
  • Comments: 0
Sony DVP-FX730 Screen Replacement

Difficulty

Moderate

Steps

13

Time Required

15 minutes

Introduction

If the device is on but nothing shows up on the screen, the screen may need to be replaced.

  1. dyRreMXWwPrhg5m6
    dyRreMXWwPrhg5m6
    Ppnf23LoTb1CRRiZ

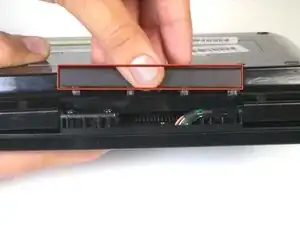

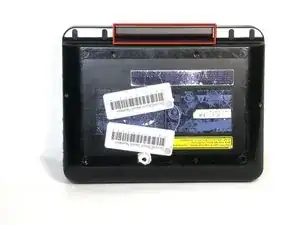

    • Use your hand to remove the small back cover by gently pulling upward.

  2. QbQ5UVtfVqPHXrAe

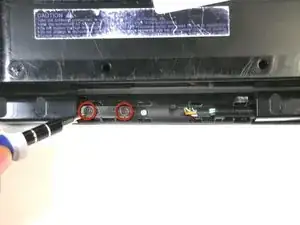

    • Using a screwdriver, remove the two 12 mm pan head screws.

  3. OYNXlQLECAmgMCfl

    • The screen should now detach from the primary device.

    • The wires, indicated with a blue box, will still connect the screen.

  4. Q2jICIvnbrvSodjQ
    Q2jICIvnbrvSodjQ
    12OQosrTsiIPEWch

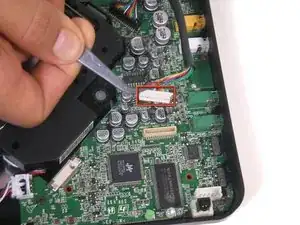

    • Remove the wires attached to the white base using tweezers to pull them up.

  5. jyAfqYOWvitDPKCY
    jyAfqYOWvitDPKCY
    NGPsRQmImmSGWxOH

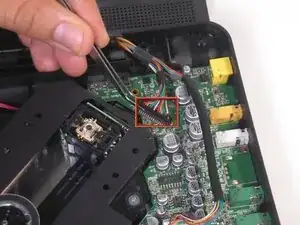

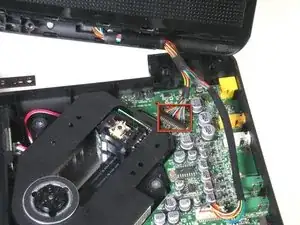

    • Referring back to Step 8, do the same with the wires attached to the black base.

  6. 5XMImW4U2S6YSZE3

    • The screen should now be completely separated from the main device.

  7. ofCSphh3sOU2QTxe

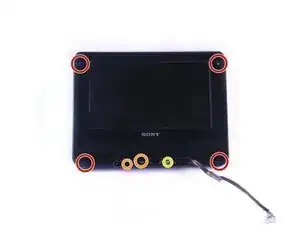

    • Remove the four rubber feet and the screws beneath.

    • Remove the two exposed screws on the left side.

    • Pull back the cables until the screw is visible.

  8. YigpcCPJdTchMNda

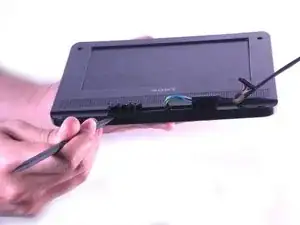

    • Using the spudger, separate the top and bottom covers.

  9. BjwM6bUMbKurDOAG

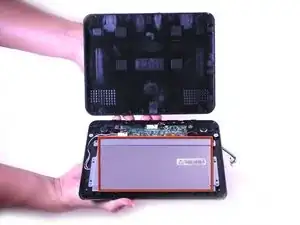

    • Identify the gray back of the screen.

  10. YQrLDj1L4LyNtfmy

    • Remove the screws.

  11. KX5rnWsNwm5Pa1km

    • Remove the metal plates.

  12. dFDGeCLiZucrEDfs
    dFDGeCLiZucrEDfs
    RX1GsY3LZOHwSeTO

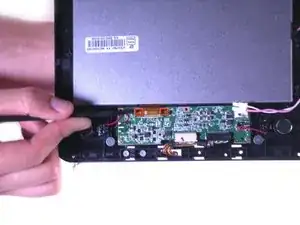

    • Using spudger, push the lock clips to unlock the ribbon cable.

    • Using tweezers, pull the connector loose.

  13. FjFiVKyvN2JDv2lF
    FjFiVKyvN2JDv2lF
    WGJ6gHLcTEsMAEhE

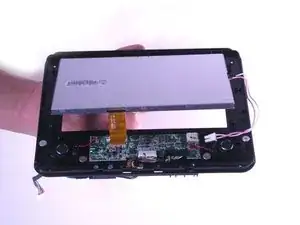

    • Place your hand on the front of the screen and push upwards.

Conclusion

To reassemble your device, follow these instructions in reverse order.
