Sony DVP-NS325 Motherboard Replacement

Written By: madison mathis

Comments: 0

Difficulty

Moderate

Steps

Time Required

20 - 30 minutes

Introduction

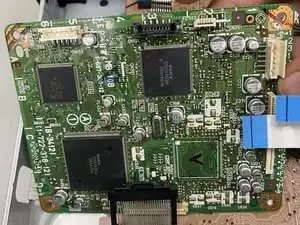

If you need to replace an old or damaged motherboard, access the motherboard with this guide. The motherboard is a vital piece for the Sony DVD player, It runs all systems making sure everything is running properly and smoothly.

Tools

Step 1

Use a Phillips screwdriver to unscrew the five screws.

Step 2

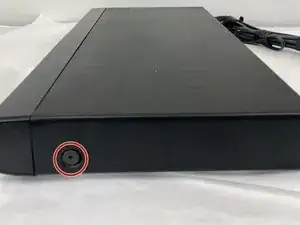

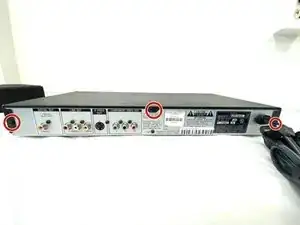

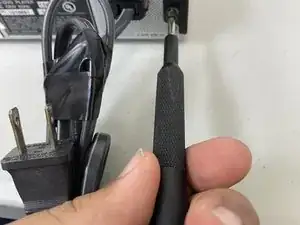

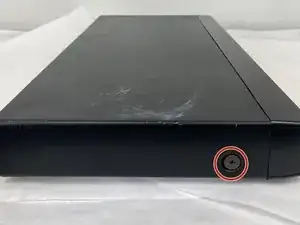

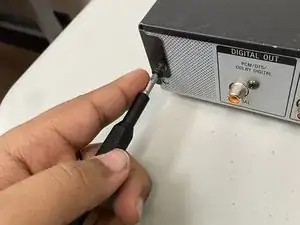

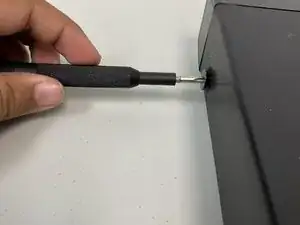

Use the Philips screwdriver to remove the screws located on the sides and the back.
Not shown are the right side screw and the middle screw.

Step 3

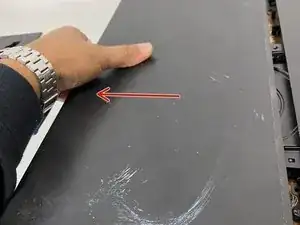

Use a spudger to separate the case from the chassis.
Remove the case.

Step 4

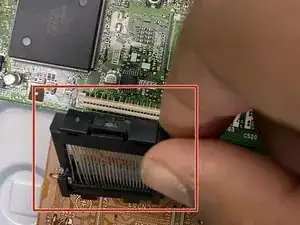

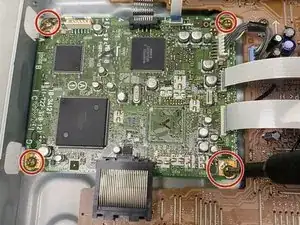

Remove all cables that are connected to the motherboard by pulling upwards from the motherboard.
Grip as close to the connectors as possible. Avoid pulling on the wires/ribbon cables.
