Sony DVP-SR200P Button Circuit Board Replacement

Written By: Jeffrey Powell
  • Comments: 0
Sony DVP-SR200P Button Circuit Board Replacement

Difficulty

Moderate

Steps

12

Time Required

1 hour

Introduction

This guide will teach you how to remove the button circuit board.

  1. mJNYdIZnPTo2gJAJ
    mJNYdIZnPTo2gJAJ
    rVuJ1aWdBE3MoWF4

    • Remove the five #1 Phillips screws (black, 3/16") attaching the cover to the DVD player.

    • One 3/16" screw on the right side of the DVD player.

    • One 3/16" screw on the left side of the DVD player (directly opposite of other screw).

    • Three 3/16" screws on the back of the DVD player.

  2. PXMdKsIPCMvZYo1P
    PXMdKsIPCMvZYo1P
    FED6rjbnFjbdwDGm

    • Slide the cover away from the front of the DVD player until it is off.

  3. CIZQGRNYt2yIxguj

    • Remove the blue tape from the processing board by gently pulling upward.

  4. GLuIiXp1O1Zm1GbE
    GLuIiXp1O1Zm1GbE
    TelL5faGjZVyvIVG

    • Use the tweezers to remove the four sets of wires connected to the processing board. Start with the cord located in front of the row of three cords.

    • The wires may be difficult to remove. Wiggling them while lifting them up may help remove them.

  5. kJZlJ26dpJtCNXpy

    • Handle the processing board with care. It is fragile.

    • Unscrew the two #1 Phillips screws (silver, 3/16") located on the two edge corners of the processing board.

  6. 4bMVmr6G5Ok1xIqC

    • Orient the DVD player so that you are facing the video and audio jacks.

    • Unscrew the two #1 Phillips screws (silver, 3/16") located on the outside of the DVD player

    • The processing board is now free to be removed and replaced.

  7. mIulUYyKTatpDguC

    • Orient the DVD player so the front of the DVD player is opposite of you.

    • Remove the two #1 Phillips screws (silver, 3/16") that attach the DVD drive to the bottom of the DVD player.

  8. 1OOhCEblCHEEQuGS

    • Remove the DVD drive by pulling it backward and upward while ensuring that it is free of any braces.

  9. ZW1UMs2PmioasefV
    ZW1UMs2PmioasefV
    a332YQHsJIHByOBC
    ivOhjPpjA4jwXJk2

    • Orient the DVD player so the button circuit board is facing you.

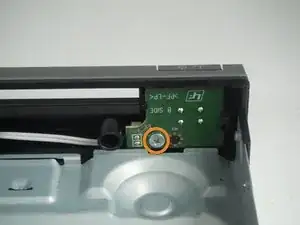

    • Remove the four #1 Phillips screws (silver, 3/16") from the button circuit board.

    • Three 3/16" screws from the longer button circuit board.

    • One 3/16" screw from the smaller button circuit board.

  10. 3GYSHEcFTbeghuHA
    3GYSHEcFTbeghuHA
    vbN4injLLVlVpJsS
    HKNN6KZ1lXUmx2IL

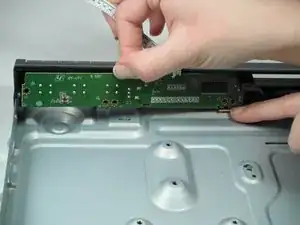

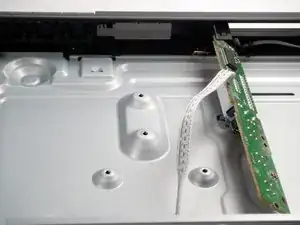

    • Hold down the copper brace that is near the far right screw hole of the long circuit board.

    • Lift the longer button circuit board over the copper brace and out of its position.

  11. PJ6oyfh2htZJycNr
    PJ6oyfh2htZJycNr
    TtTv1wLKAbTLXhXO
    1aoKcDKeyDFmfUdt

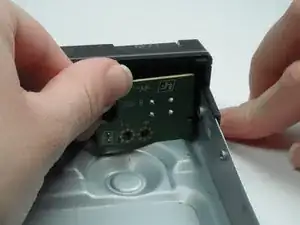

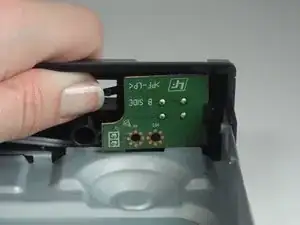

    • Push back the black, plastic clip near the left center of the shorter button circuit board.

    • Pull the shorter button circuit board out of its position.

  12. eRUfyqjaGAnADKQI
    eRUfyqjaGAnADKQI
    FyYP1nrss1FTGPQo

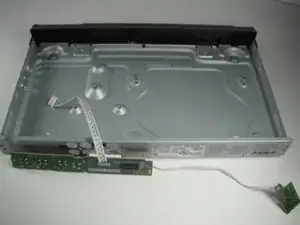

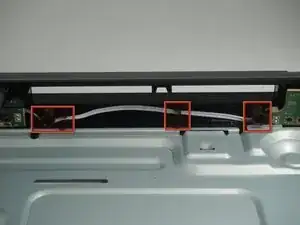

    • Wiggle the white cord connecting the two boards out from under the plastic pieces securing the cord.

    • Lift the button circuit board out of the DVD player.

Conclusion

To reassemble your device, follow these instructions in reverse order.
