Sony Dream Machine Speaker Replacement

Written By: Skylar Caststeel
  • Comments: 0
Sony Dream Machine Speaker Replacement

Difficulty

Easy

Steps

6

Time Required

7 - 15 minutes

Introduction

Replace a broken speaker in the Sony Dream Machine alarm clock.

  1. vjstgqSdouw5AqqH
    vjstgqSdouw5AqqH
    mYZmCO6jCMmHkBGL

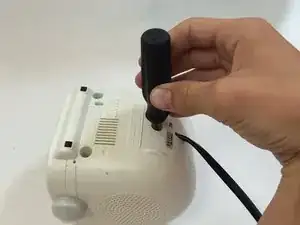

    • Unscrew the screws located here with a Phillips head screwdriver.

  2. PKEEaqC3yZBOlgds

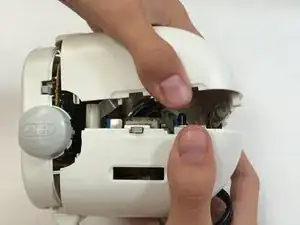

    • Open the alarm's casing.

  3. WfAUc2oBp6DsGGvU
    WfAUc2oBp6DsGGvU
    L1brQalfOG1HX5hh
    YrGvbQmnUCmv5pEC

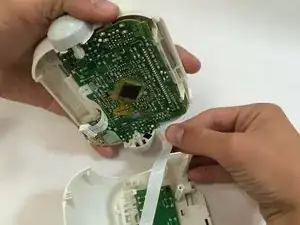

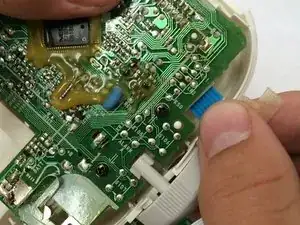

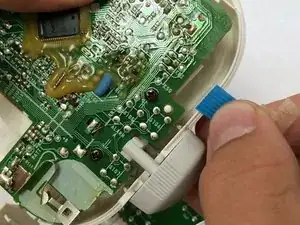

    • For the product's safety, remove the ribbon cable shown.

  4. A4isK4IjEt2TFxHL

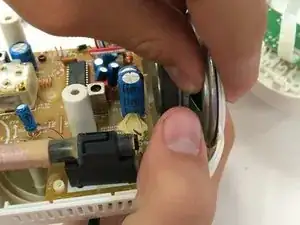

    • Locate the speaker and desolder the contact points.

  5. HoqgjNVFXRqqE3OM

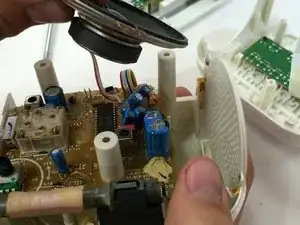

    • Remove the broken speaker.

  6. yPvktUVxruhpLDeM

    • Place the new speaker in the slot and resolder the contact ports.

Conclusion

To reassemble your device, follow these instructions in reverse order.
