Sony Ericsson W350a Speaker Replacement

Place the phone face down on a flat smooth surface so that the camera, logos, and speaker face up.

Using the provided notch on the bottom of the back cover, insert a plastic opening tool and lift upwards to remove the back cover of the phone.

Set the cover to the side upon removal.

Insert the plastic opening tool into the crevice between the camera and the battery of the phone. Using a gentle prying motion, lift the end of the battery and remove.

After removal, recycle the defective battery appropriately.

Flip the phone over and remove the Sony Ericsson sticker that is over the phone's ear speaker.

Using a T5 screwdriver, loosen and remove the two screws under the Sony Ericsson sticker by turning them counterclockwise.

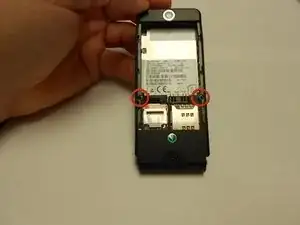

Using a mini Phillips screwdriver, remove two screws by turning them counterclockwise.

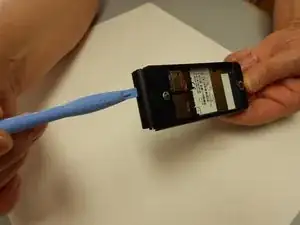

Insert an opening tool in the bottom crack between the front and back plates and use a gentle upward pull to separate the back case from the front case.

Using a T5 screwdriver, remove the two screws by turning them counterclockwise.

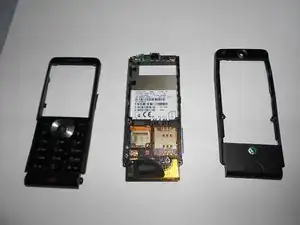

Using an opening tool and a gentle outward motion, separate the front plate from the inner phone workings.

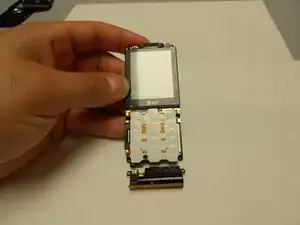

Using a Phillips head screwdriver, remove the screw from the front number pad by turning it counterclockwise.

Remove the speaker from the phone.
