Introduction

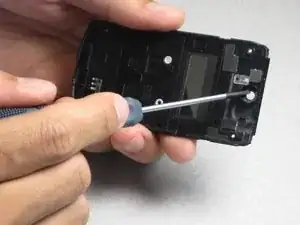

In this guide the back housing of the phone will be removed and the camera lens will be removed from the housing.
-
-

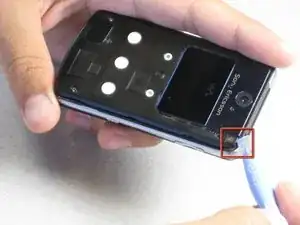

Find the small notch on the side of the phone. The notch is located by the "fast-forward" button and the "lock" switch.
-
-
-
Insert your plastic opening tool into the notch.
-

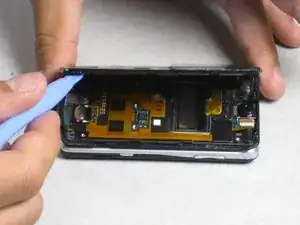

Pry off the faceplate by gently sliding the plastic opening tool around the phone while still keeping the tool under the edge of the phone.
-
When enough of the faceplate has been lifted it can be easily removed.
-
-
-

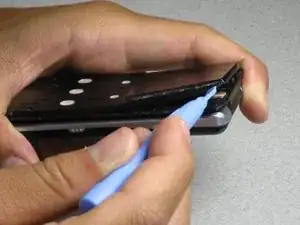

Insert the plastic opening tool in the notch at the top corner of the phone.
-
Lift the corner and run the plastic opening tool around the phone until the back housing can easily be removed.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
