Sony Ericsson W810I Keypad Replacement

Written By: Ben Micucci
  • Comments: 0
Sony Ericsson W810I Keypad Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

This guide will show the user how to remove the keypad

  1. ZtAb15lxBtHiY2IR

    • Make sure phone is off, and press down firmly against the Cingular icon with your thumb

    • Slide the panel down and remove latch

  2. a1jF3KvJRPrftxp3
    a1jF3KvJRPrftxp3
    sqVhBQKbyJ3NGDjw

    • Lift and Pull battery out

    • Remove the SIM card too if you have one

  3. jdXItrSPkenkQHaw

    • Remove the two outer screws using a T-7 head for a screwdriver

  4. dUpgEKdV2veGwXrP

    • Remove the two smaller inner screws with the Mini-Phillips screwdriver head

  5. qC5SrfLjrFQ6sgW3
    qC5SrfLjrFQ6sgW3
    BkrTNFGTlqmbtgFE

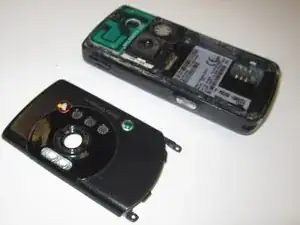

    • Remove the Back (camera side) Faceplate with the blue hand-wedge

  6. rBsODYi25oDNRuwV
    rBsODYi25oDNRuwV
    LeqImqiMAoErdl6J
    QcXR35KpFj6DL2s2

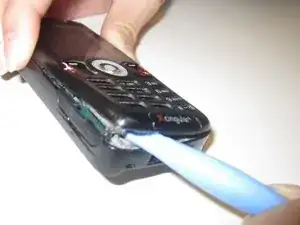

    • Flip phone over and pry off the Front (Keypad side) Faceplate with multiple blue hand-wedges

    • Separate keypad from logic board by turning it upside down and allowing it to fall off

Conclusion

To reassemble your device, follow these instructions in reverse order.
