Sony Ericsson Xperia Play Touch Screen Glass Digitizer Replacement

Written By: ZFix
  • Comments: 0
Sony Ericsson Xperia Play Touch Screen Glass Digitizer Replacement

Difficulty

Difficult

Steps

7

Time Required

No estimate

Introduction

If you touchscreen / digitizer is broken or not working, with this manual we will show you how to replace it.


Please SUBSCRIBE to my channel ツ

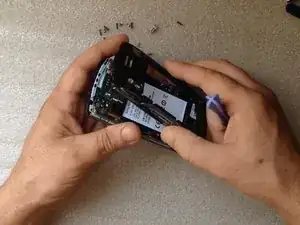

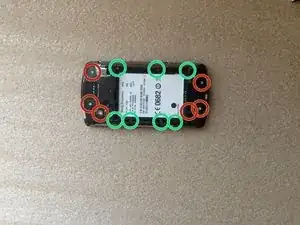

  1. pQqNwduQLhUkMZag
    pQqNwduQLhUkMZag
    iU5wNDUdWcVOHqXO
    fdaTrZGioDBhBMd5

    • Remove the battery cover and the battery.

    • Unscrew the 7x black screws and 6x silver screws.

    • Remove the rear bezel.

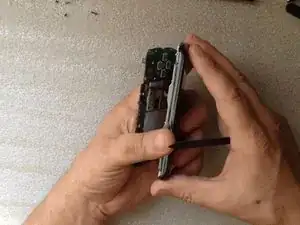

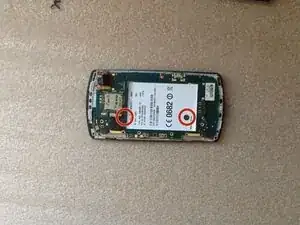

  2. 2NhnvPijLeKoDt3H
    2NhnvPijLeKoDt3H
    BtKVNnjSu55ZQyar
    PJxacgajLsXb5wIl

    • after removing the 2x black philips screws, use a plastic tool to disconnect the main flex cable connector.

    • Disconnect the gaming keyboard flex cable.

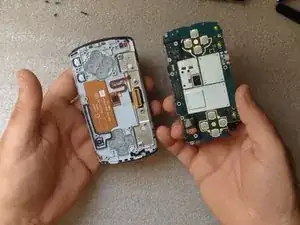

  3. UICrH6OeCZoBSBMY
    UICrH6OeCZoBSBMY

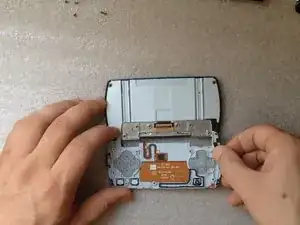

    OVVXGOvTMK3FKHFG

    • Remove the motherboard and the gaming keyboard.

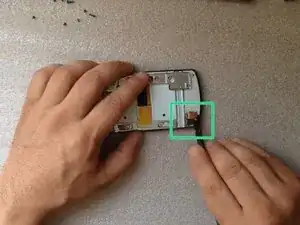

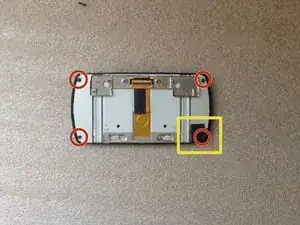

  4. SqUV1FOuZ6oo1ylr
    SqUV1FOuZ6oo1ylr
    WjqMupYRwpc42fED

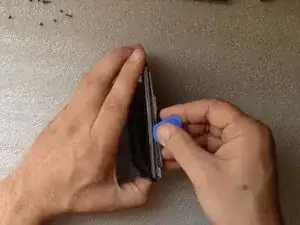

    sOmkUWNNbofp2QEN

    • Remove the 4x philips screws and the small black sticker on the corner.

    • Disconnect the touchscreen flex cable connector.

    • Disassemble the front bezel.

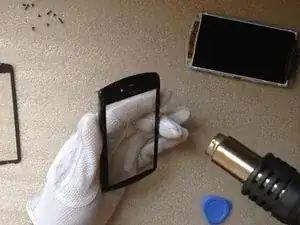

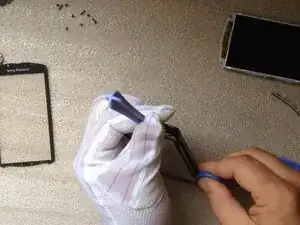

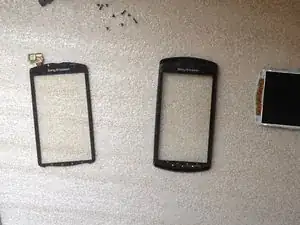

  5. UDIFSZFKYRdfpHtV
    UDIFSZFKYRdfpHtV
    nL6R1MP13aFtpkG6
    Ay31Jw2tKBEqprkj

    • To separate the touchscreen from the base bezel use hot air and plastic tools.

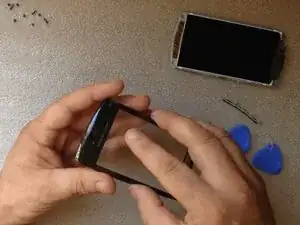

  6. MNtHLJRO1gNynuiY
    MNtHLJRO1gNynuiY
    pOYPDmZNVUhHBOKs

    • Use double side adhesive tape to assemble the touch screen.

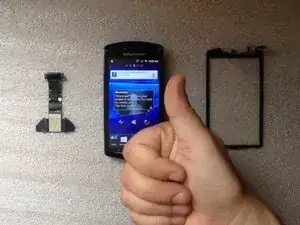

  7. r3VEGKAKRvMVdNub
Conclusion

To reassemble your device, follow these instructions in reverse order.
