Sony Ericsson w600i LCD Replacement

Written By: Beau Blanchard

Comments: 4

Difficulty

Moderate

Steps

Time Required

15 - 20 minutes

Introduction

Tools

Step 1

Grip the lower portion of the back of the phone and slide downwards.

I really needed Sony Ericsson battery w600i Walkman phone orange color and u s b cable charger for Sony Ericsson Walkman phone I really needed them

Bertram Richardson - 23/10/20

So bad in need of

Bertram Richardson - 23/10/20

Everything just like that phone I have in need of battery and u s b cable charger for it sony Ericsson battery w600i Walkman phone orange color

Bertram Richardson - 23/10/20

Step 2

Lift battery at the rounded notch near the bottom of the phone.

Step 3

Unscrew the four Torx screws from the backplate.
The backplate may begin to separate from the keypad face. Do not try to remove it yet.
The screws are T5 Torx screws, 5.6mm.

Step 4

Swivel the phone open.

Step 5

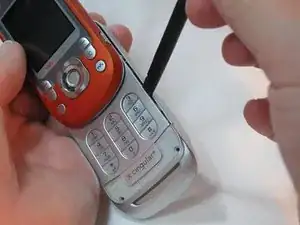

Using the Spudger, gently pry up the U-shaped grey cover below the keypad.
The cover is secured with adhesive tape. The gentler this is removed, the easier it will be to reassemble.

Step 6

Remove the two Torx screws from below the cover.
These are T5 Torx screws, 8.6mm.

Step 7

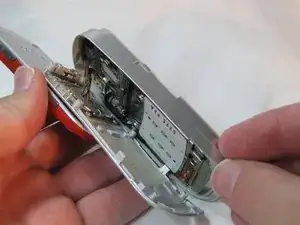

Gently work a spudger or a fingernail between the keypad face and the backplate.
The pieces are clipped together most tightly at the bottom loop section.

Step 8

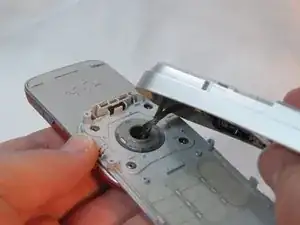

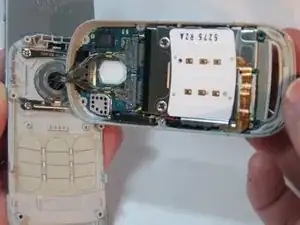

Separate the keypad face from the backplate.
The keypad keys and the button component are both loose inside the phone, so take note of their orientation in case they become dislodged.
Take note of the braided cord's state. Upon reassembly it should be returned to the same orientation.

Step 9

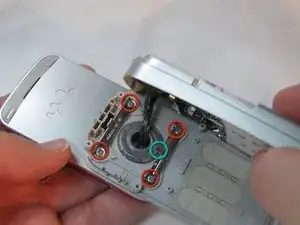

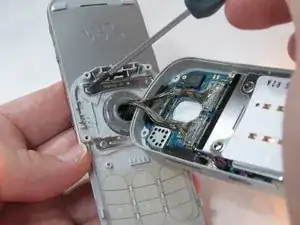

Holding the backplate away from the swivel, remove the 4 small Phillips screws and both stamped struts from the swivel assembly.
Note that only the bottom strut has a tab.
The screws are Phillips, 2.9mm

Step 10

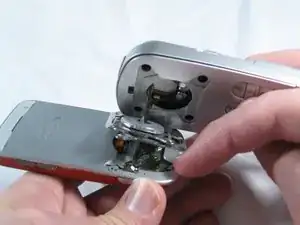

The back housing is now disassembled, and the swivel assembly is revealed.

Step 11

Remove the four black Phillips screws holding the swivel assembly to the LCD section of the phone.
Be mindful of the screws, as they are very small.
The screws are Phillips, 2.4mm

Step 12

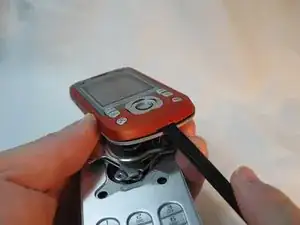

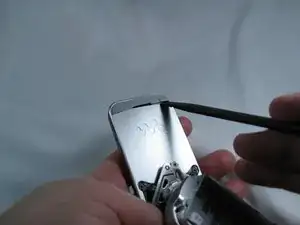

Gently remove the grey plastic cover at the top-rear of the LCD section with a spudger.
It is secured with adhesive tape, the more gently you remove this piece, the easier reassembly will be later.

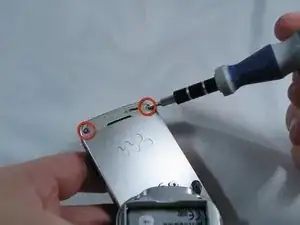

Step 13

Remove the two Torx screws revealed under the grey cover.
The screws are Torx T5, 5.6mm

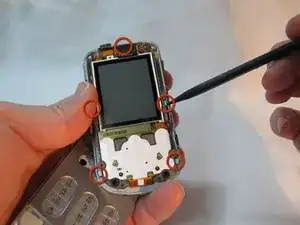

Step 14

Gently pry off the front face, starting at the bottom slot.

Step 15

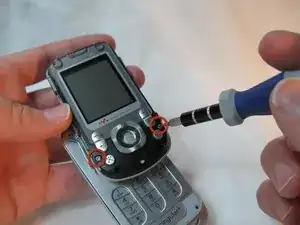

Remove the Torx screws near the buttons.
The screws are Torx T5, 5.6mm

Step 16

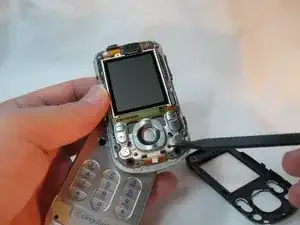

Remove the black front plate.

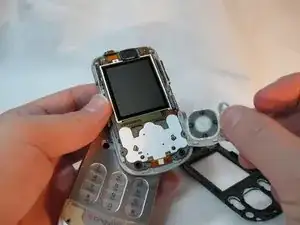

Remove the button overlay, taking note of its position for reassembly. There are small grey nubs that correspond to holes in the overlay.

Step 17

Gently release the small grey retaining clips around the outside of the display assembly.

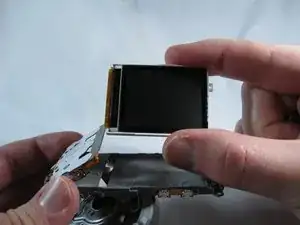

Separate the display assembly from its backplate.
Take care; some of the side buttons may dislodge as the backplate is separated.
The LCD section is now disassembled.

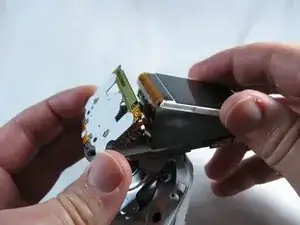

Step 18

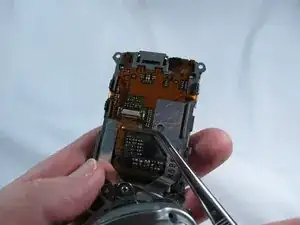

The LCD display is connected to the device with a small flex cable. To release the cable, flip the small handle on the connector to an upright position.

Step 19

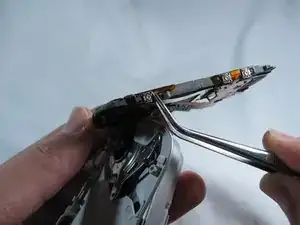

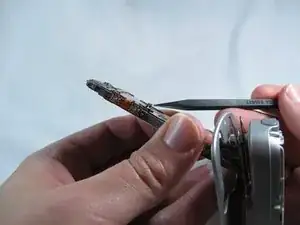

Gently pull the flex cable downwards with a pair of tweezers.

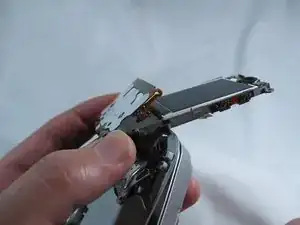

Step 20

Gently separate the side button component from the inner casing. It is attached with adhesive.
Gently pull the front button component away from the inner casing slightly. It does not need to be removed.
