Sony Ericsson xPeria Active Screen Replacement

Written By: Alex Tobin
  • Comments: 1
Sony Ericsson xPeria Active Screen Replacement

Difficulty

Easy

Steps

9

Time Required

20 - 30 minutes

Introduction

Sometimes, the screen can become cracked, damaged, or just simply not work. This can be frustrating, but never fear, as this replacement guide will make everything easier.

  1. wvsQT3MHV3bZjdRT
    wvsQT3MHV3bZjdRT
    UNxYNDIVMwrFq4Pr
    gbJJJ3BjSST4Felq

    • Open the flaps and remove the back cover using the plastic opening device.

  2. odLCBBAA1anpFM53
    odLCBBAA1anpFM53
    ryTMG5WHKeNPpCkM

    • Remove the battery shield with the plastic opening device.

  3. UpS3tPTRQwWfmhDd
    UpS3tPTRQwWfmhDd
    NJfqUVAjLGxtL3Yu

    • Remove the battery.

  4. MEEZfihYuXQASEfH

    • Unscrew the 5mm screws with the T5 head.

    • Unscrew the 6mm screw with the T6 head.

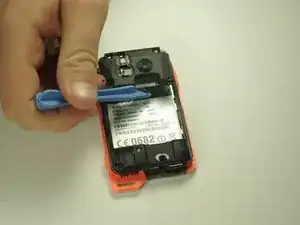

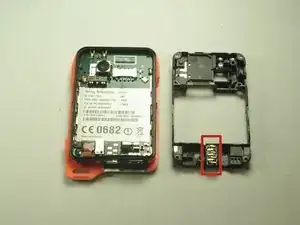

  5. MDqucJaGs1gcfKDh
    MDqucJaGs1gcfKDh
    LVVoWu1vNuZ1o4Hj

    • Remove the black cover with the plastic opening tool.

    • Remove the headphone jack from its slot.

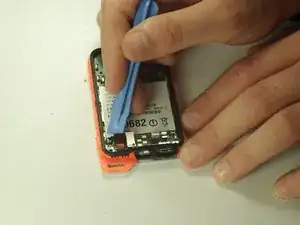

  6. DZ466bLSKZbjssWq
    DZ466bLSKZbjssWq
    thTBRTWjeeDV5Qpk

    • Unplug the power cable by carefully prying it away from the motherboard.

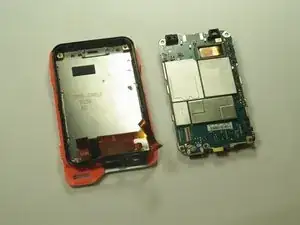

  7. vjaJfKyIuWYUXh5t
    vjaJfKyIuWYUXh5t
    IyyNfJcxVRPnJGrZ

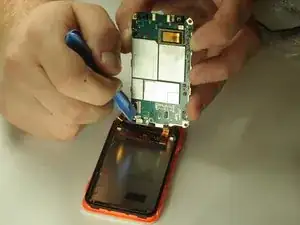

    • Remove the power strip on the back side of the motherboard.

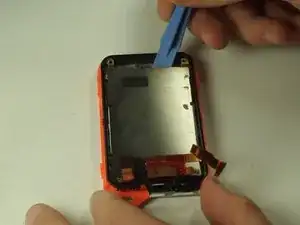

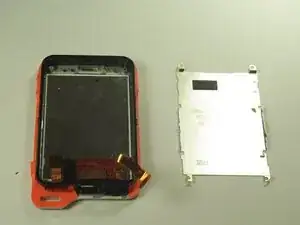

  8. Rt1UZNGDoTwiplRD
    Rt1UZNGDoTwiplRD
    FmJtrWyeiVfyErJM

    • Remove the shield.

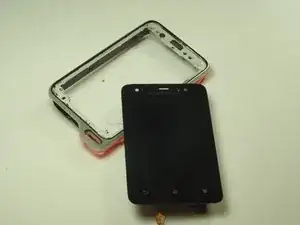

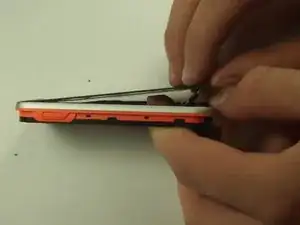

  9. pWvXoVaZgmSTjW1b
    pWvXoVaZgmSTjW1b
    lA3YmYtMEEqyDyBj

    • Push the screen through the front of the case, gently.

    • It may be a little tough, just work your way around the edges of the screen until it separates from the main case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
