Sony Ericsson z300 Back Speaker Replacement

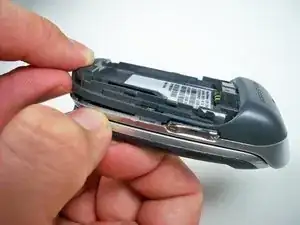

To remove the back cover, use your thumb to press down on the center of case and slide it off.

Using a fingernail lift the battery out of the phone.

Slide the sim card out with your thumb.

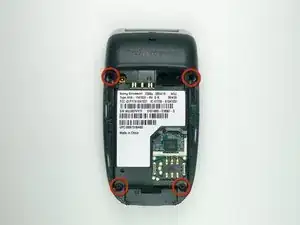

To remove the back case first remove the four screws shown with a T5 Torx screwdriver

Using your fingernail lift up the side of the casing around the bottom of the phone to release all five of the clips.

Lift up towards the bottom and slide the case off.

Use a plastic opening tool to lift the speaker out of the back case.
