Sony NWZ-E473 Screen Replacement

Written By: Matthew Hintz
  • Comments: 1
Sony NWZ-E473 Screen Replacement

Difficulty

Moderate

Steps

14

Time Required

No estimate

Introduction

When removing the screen, you may want to use gloves so that no glass shards cut your hands.

  1. TXDudNUhWoe11pTX

    • Use a Phillips #00 screwdriver to unscrew the two 5 mm screws located on the bottom of the back of the device.

  2. lyZUND2XxSY6DgSc

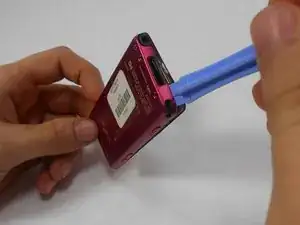

    • Use a plastic opening tool to loosen the bottom portion of device.

  3. pBSj2WFOx1iLjHpa

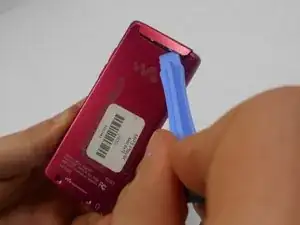

    • Use a plastic opening tool to loosen the top panel of the device.

  4. YjFG5tYp2ZoKHPQp

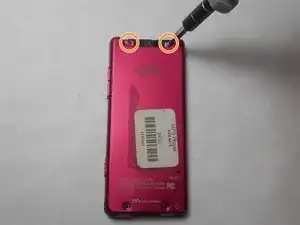

    • Use a Phillips #00 screwdriver to remove the two 3 mm screws located on the portion under the top panel of the device.

  5. Q2y5rOqMwIG3XOHh
    Q2y5rOqMwIG3XOHh
    AAy4b1UvBGeAkIw6
    QrwmQQPHrRrRwpDK

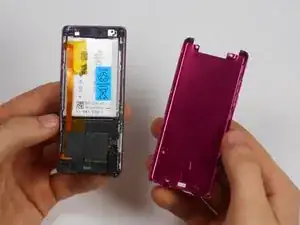

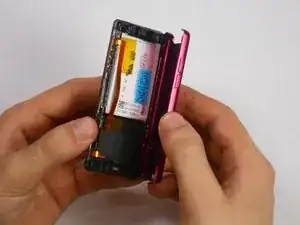

    • Remove the back plate from the device.

  6. EnwUac2TLXWdFg1P

    • Use a nylon spudger or tweezers to remove the plastic USB cover.

  7. CDqwSTKwhWIMyaWx

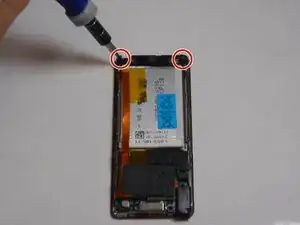

    • Use a Phillips #00 screwdriver to unscrew two 2 mm screws located on the top corners of the device.

  8. QKuMHr6IXAfI4GGP

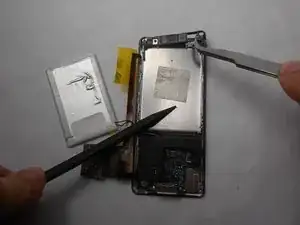

    • Use a nylon spudger or tweezers to remove the plastic protective plate at the top of device.

  9. RFNDVADT5TynO43H
    RFNDVADT5TynO43H
    VYCnWYrgl1nPYnI5

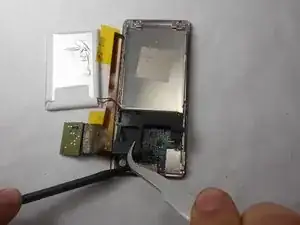

    • Remove the plastic protective frame located over the motherboard with tweezers and a spudger.

  10. OjCtNOYfQaCWsMbF

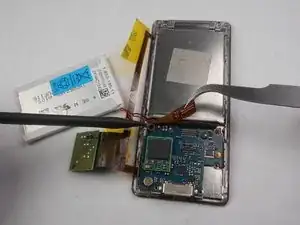

    • Remove screen connection from motherboard using tweezers and spudger.

  11. DJDLhknqUxMbaZBb

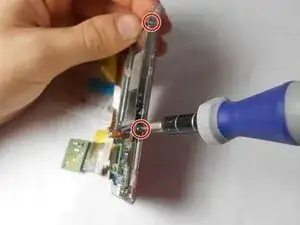

    • Use a Phillips #00 screwdriver to remove two 3 mm screws at the bottom sides and two 1 mm screws at top sides of the device.

  12. oHksRiqXFJGrosek
    oHksRiqXFJGrosek
    B4AXfyT2mltGWUIM

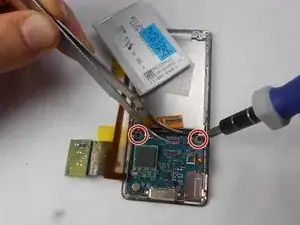

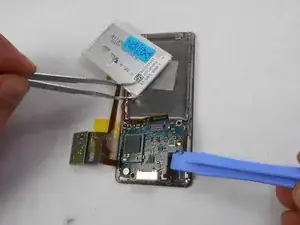

    • Use a Phillips #00 screwdriver to unscrew two 2 mm screws, and remove the motherboard from the device with tweezers and a plastic opening tool.

  13. MASJBNGHiBdefHIi
    MASJBNGHiBdefHIi
    NoQpNFU3OMBwCmqS

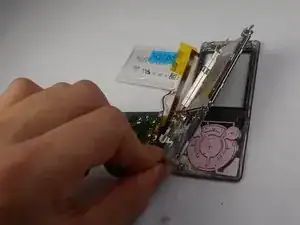

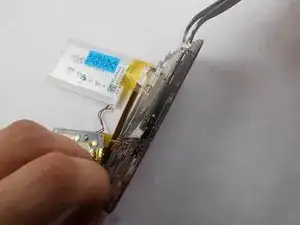

    • Disconnect the metal shielding plate from the front panel with tweezers or a plastic opening tool.

  14. BXFM5cdLJAmfInO1
    BXFM5cdLJAmfInO1
    ZJSZdISPMrZnb4GO

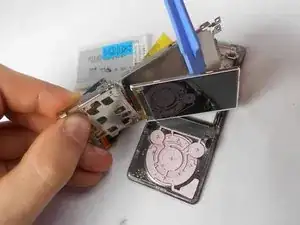

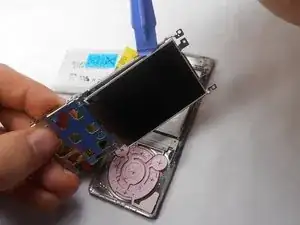

    • Use a plastic opening tool to remove the screen from metal back plate.

Conclusion

To reassemble your device, follow these instructions in reverse order.
