Sony SRS-XE200 Battery Replacement

Written By: Vishant Savaliya
  • Comments: 2
Sony SRS-XE200 Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

20 minutes

Introduction

The Sony SRS-XE200 is a compact and portable Bluetooth speaker that delivers impressive audio performance. However, like the battery in any battery-powered device, the one in the Sony SRS-XE200 may eventually need to be replaced due to wear and tear or diminished performance. If you're experiencing issues with the battery life or charging of your Sony SRS-XE200, it may be time for a battery replacement.

  1. HXBtUnSSktaVdOQ2
    HXBtUnSSktaVdOQ2
    KpqW4DLtyIXawFWO

    • Pry the outer cover of the speaker from the body using a spudger.

    • A clicking noise can be heard as the cover is detaching.

  2. BsLBnX6qgmbK5Bk2

    • Pry the rubber cap away from the body of the speaker using a spudger.

  3. ZP4HwmxrjuJ35ZBG
    ZP4HwmxrjuJ35ZBG
    SBTclj4dgUq1HUkC

    • Remove the eight 1 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

    • Remove the four 0.8 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

  4. GXGevqLCGqMMIFkX
    GXGevqLCGqMMIFkX
    LWPvaoskpBpEymSl

    • Unplug the colored wires from the motherboard to detach the speaker assembly.

  5. jCDtBq1EA3ZgRXpi
    jCDtBq1EA3ZgRXpi
    ZBCcCiEZDa2JIHiB
    RrKOXbS32d3qZ2tN

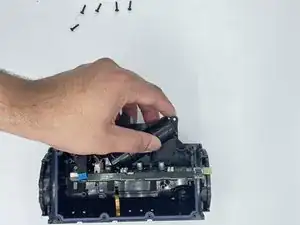

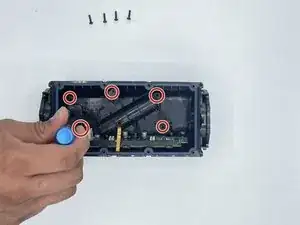

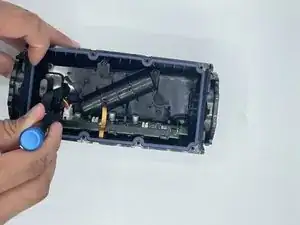

    • Remove the five 1 mm screws connecting the motherboard to the case with a Phillips #1 screwdriver.

    • Separate the motherboard from the case.

  6. RMWYHVdaHCabmKLi
    RMWYHVdaHCabmKLi
    TiuX1l1Rp1skUQMF
    5UNIitCGFHZyKlTQ

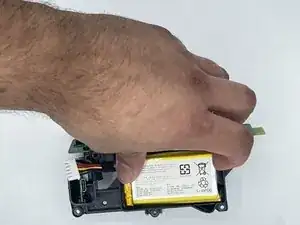

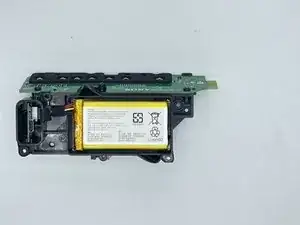

    • Remove the battery from the battery holder with a nylon spudger.

    • Unplug the battery from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
