Sony SRS-XE200 Microphone Replacement

Written By: Vishant Savaliya
  • Comments: 0
Sony SRS-XE200 Microphone Replacement

Difficulty

Moderate

Steps

11

Time Required

20 minutes

Introduction

The Sony SRS-XE200 is a popular Bluetooth speaker known for its portable design and impressive sound quality. However, like any electronic device, it may encounter issues with its built-in microphone over time. If you're facing problems with the microphone on your Sony SRS-XE200, such as poor audio quality or malfunction, you may need to replace it. Microphone replacement can be a technical process that requires careful handling and attention to detail.

  1. HXBtUnSSktaVdOQ2
    HXBtUnSSktaVdOQ2
    KpqW4DLtyIXawFWO

    • Pry the outer cover of the speaker from the body using a spudger.

    • A clicking noise can be heard as the cover is detaching.

  2. BsLBnX6qgmbK5Bk2

    • Pry the rubber cap away from the body of the speaker using a spudger.

  3. ZP4HwmxrjuJ35ZBG
    ZP4HwmxrjuJ35ZBG
    SBTclj4dgUq1HUkC

    • Remove the eight 1 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

    • Remove the four 0.8 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

  4. GXGevqLCGqMMIFkX
    GXGevqLCGqMMIFkX
    LWPvaoskpBpEymSl

    • Unplug the colored wires from the motherboard to detach the speaker assembly.

  5. jCDtBq1EA3ZgRXpi
    jCDtBq1EA3ZgRXpi
    ZBCcCiEZDa2JIHiB
    RrKOXbS32d3qZ2tN

    • Remove the five 1 mm screws connecting the motherboard to the case with a Phillips #1 screwdriver.

    • Separate the motherboard from the case.

  6. RMWYHVdaHCabmKLi
    RMWYHVdaHCabmKLi
    TiuX1l1Rp1skUQMF
    5UNIitCGFHZyKlTQ

    • Remove the battery from the battery holder with a nylon spudger.

    • Unplug the battery from the motherboard.

  7. iBbIkvHnmRixBaK1
    iBbIkvHnmRixBaK1
    l1BnN3AFvQICrpAQ

    • Remove the charging port.

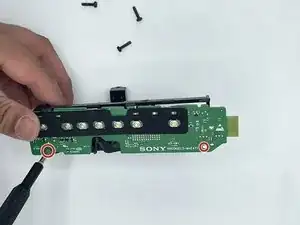

  8. bwpYKCvXyRlWDGhU
    bwpYKCvXyRlWDGhU

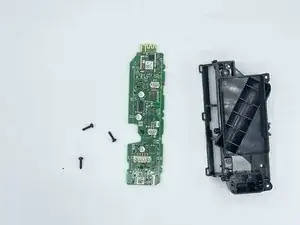

    NgWbL4rpMLnLEOrv

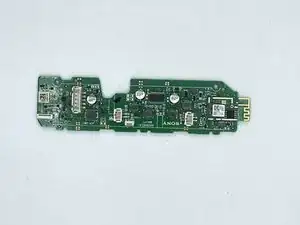

    dwSEVMII2WdrmPF1

    • Remove the two 0.8 mm screws connecting the motherboard to the microphone with a Phillips #1 screwdriver.

    • Remove the microphone.

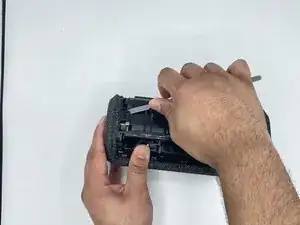

  9. gKYBDOAMNi5UGgm6

    • Pry the rubber cap away from the body of the speaker using a spudger.

  10. 5JdPRrDRWKbOAFfr

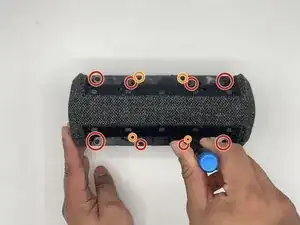

    5JdPRrDRWKbOAFfr
    IpAhhTJ5lIm1uESv

    • Remove the eight 1 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

    • Remove the four 0.8 mm screws that connect the motherboard case and the speaker case with a Phillips #1 screwdriver.

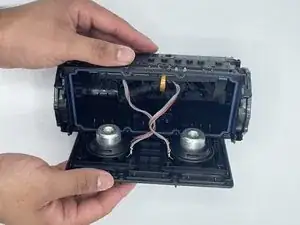

  11. kyADJMnrLHNv6aPX
    kyADJMnrLHNv6aPX
    RmtHMS15LpEerMIc

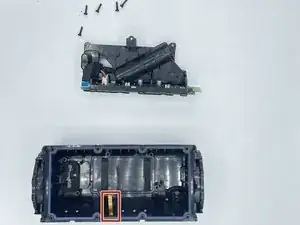

    uluFIXSrgKHiPLMC

    • Remove the microphone from the case of the speaker.

    • Replace the microphone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
