Sony VAIO VPCEE26FX Keyboard Replacement

Written By: Christopher Hover
  • Comments: 0
Sony VAIO VPCEE26FX Keyboard Replacement

Difficulty

Moderate

Steps

8

Time Required

10 minutes

Introduction

This guide shows how to remove/replace the keyboard on the Sony VAIO VPCEE26FX laptop computer.

  1. TSEHqC46BPmC6GGC
    TSEHqC46BPmC6GGC
    ArWbQXBQCFWRGq4M

    • Ensure that the laptop is powered off before disconnecting the battery.

    • Flip the laptop over so the underside of the laptop is facing up.

  2. HKesqTQTb5exyA2b
    HKesqTQTb5exyA2b
    sfPsLYO5HGUXOZYu

    • Slide the two tabs towards each other until the battery disconnects slightly from its position.

    • Carefully lift the battery out of its position away from the laptop.

    • The battery is not pictured here, since it is missing from this particular device.

  3. BVRgtyMkDoJUoVxF
    BVRgtyMkDoJUoVxF
    Bufu5u3DEYLKJeZM

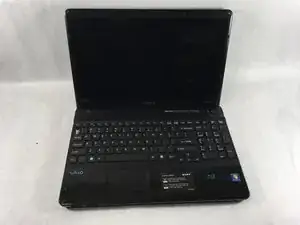

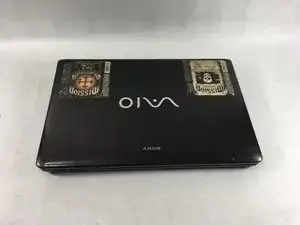

    • Flip the laptop back over so it is face up.

    • Open up the laptop.

  4. PLGCv6LtK5vAsILY

    • Using a plastic opening tool, pry along the seam between the keyboard and case to help in separating the two.

    • Continue to lift up gently using the plastic opening tool until the keyboard begins to separate from the case.

  5. xm2URFLfcELoc1Nj
    xm2URFLfcELoc1Nj
    gexZZKNJYvVALYkQ

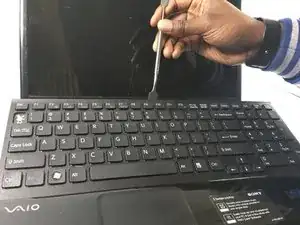

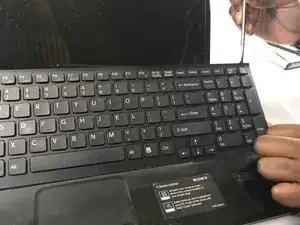

    • Continue lifting up and moving down starting on the left side of the keyboard moving towards the right side of the computer.

  6. LjTbSdDkmSdiMgHI
    LjTbSdDkmSdiMgHI
    p3UdegBMKPvFSOaK

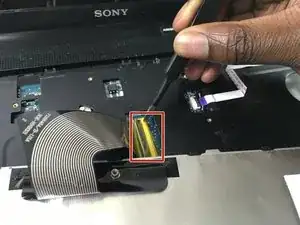

    • Carefully tilt the top of the keyboard towards you ensuring the ribbon cable is not under too much tension.

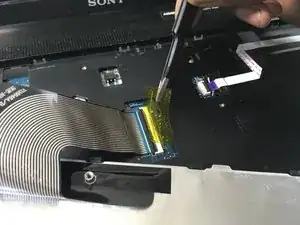

    • Use a pair of tweezers to help remove the plastic adhesive film covering the adapter/port for the ribbon cable.

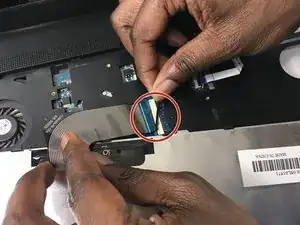

  7. dWejqvVBaj1TNS22

  8. BrkpEKg6UhjL5TSd

    • Lift the keyboard up and away from the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
