If the LCD display of your phone is broken, in this manual we will show you, how to disassemble the phone and how to change it.
Parts
-
-

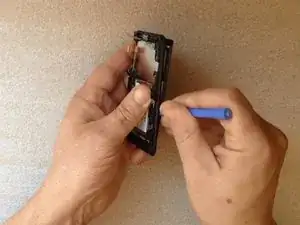

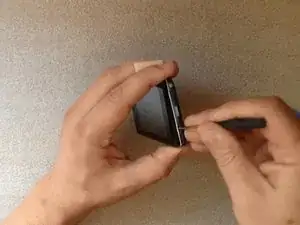

The small bottom bezel is held by 2x locking clips.
-
Preferably use plastic tools for disassembling.
-
-
-

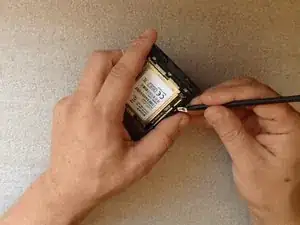

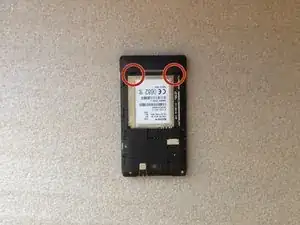

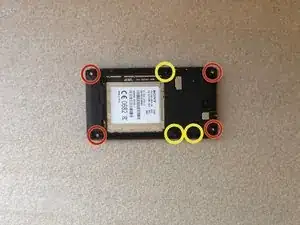

There are 4x silver screws and 3x black screws.
-

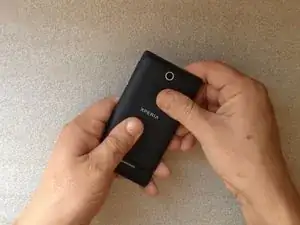

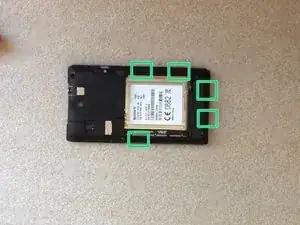

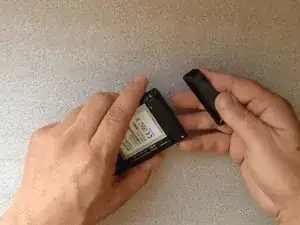

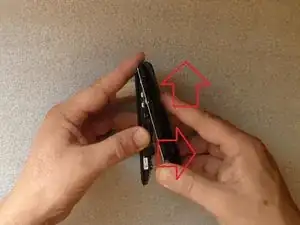

The rear cover is held by 5x locking clips.
-

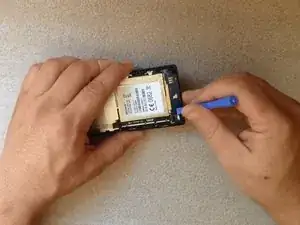

Two of them, at the bottom side are more hard for unlocking. You can use a screwdriver or other metal tool to unlock them.
-
-
-

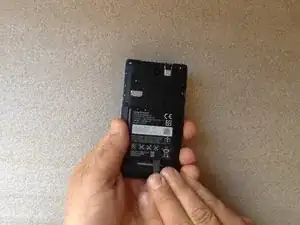

Remove the back cover.
-

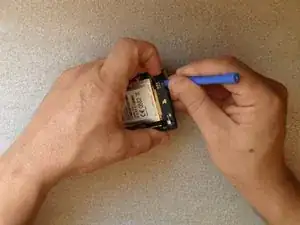

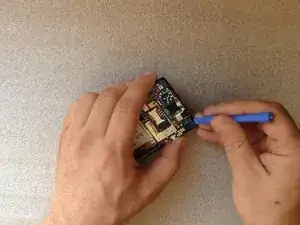

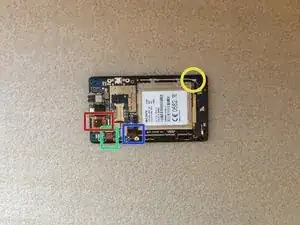

With a plastic tool disconnect one by one:
-
LCD Display flex cable
-
Touchscreen flex cable
-
Menu Buttons Board flex cable
-
Coaxial Wire Antenna cable
-
-
-

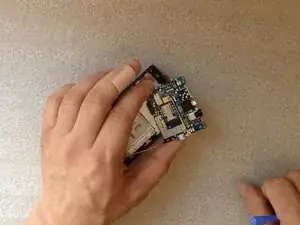

Disconnect the other side of the flex cable and remove the Home Buttons board.
-
Unstick the camera button.
-
-
-
The touch screen is stuck to the frame with double side adhesive tape.
-

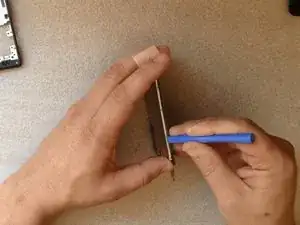

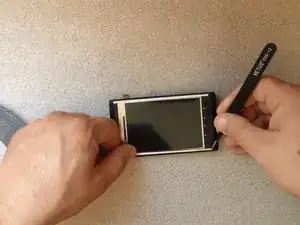

By using plastic tools gently start separating.
-
At the bottom is glued on firmly because the bonded surface is larger.
-

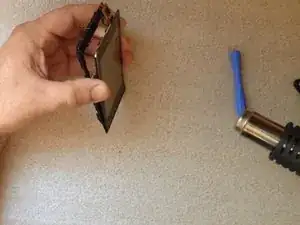

Use a hot air to make separating more easy and safety.
-
-
-

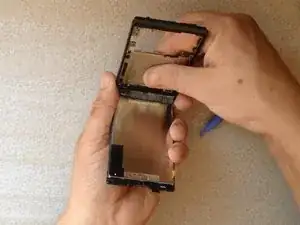

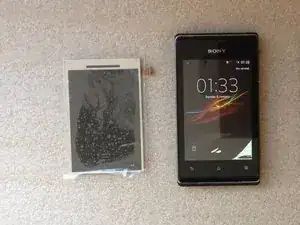

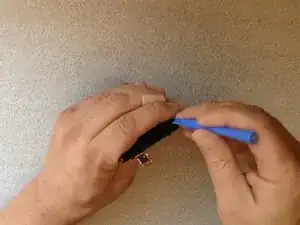

With a plastic tool, carefully separate the LCD display from the touch screen.
-

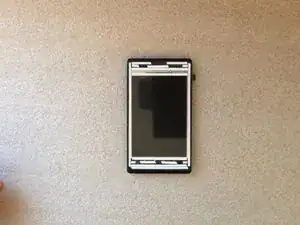

Clear the LCD Display from the old adhesive tape.
-
-
-
Install the new LCD into the frame and put adhesive tape. Be careful not to cover the holes (for the speaker, menu buttons etc.).
-

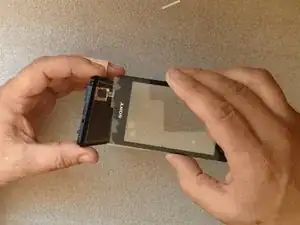

Install the Touchscreen.
-
-
-
To reassemble your device, follow these instructions in reverse order.
-
.
-
