Sony Xperia E4 Middle frame with Battery Replacement

Written By: ZFix
  • Comments: 0
Sony Xperia E4 Middle frame with Battery Replacement

Difficulty

Easy

Steps

3

Time Required

5 minutes

Introduction

E2104, E2105, E2115, E2124

How to disassemble the device and remove / replace the battery or the loudspeaker.

  1. Yb1CpKA6WL2vS6h1
    Yb1CpKA6WL2vS6h1
    FbVjIwAAs4bOf3RY
    TlprHSlPPimYlFAV

    • Remove the back cover and any installed SIM and memory cards.

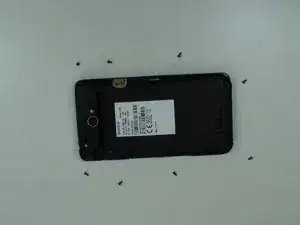

    • There are 8x black screws Torx T4. Remove them.

  2. lQfWhclOQgwbOkMR
    lQfWhclOQgwbOkMR
    EfRTPFuCJ2vkWyVK
    SSqkhwODc14vokUX

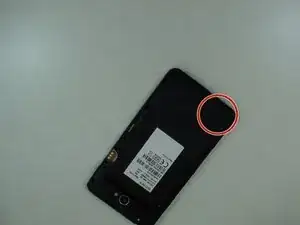

    • Remove the small black rubber at the lower left corner.

    • Under it is the battery flex cable, disconnect it.

  3. kIWJpZylBRXqyZYC
    kIWJpZylBRXqyZYC
    PePSjCXnVQDWMQTX
    51G1Nl1GlZZGdQNy

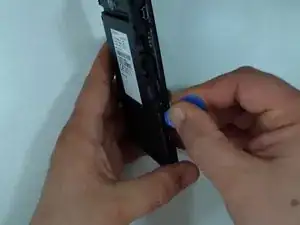

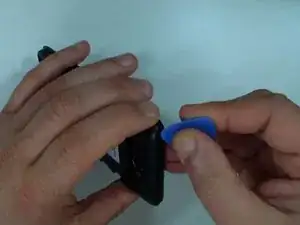

    • Use a plastic tool to separate the middle frame.

    • The battery is glued to the middle frame with an adhesive tape.

    • Loudspeaker

Conclusion

To reassemble your device, follow these instructions in reverse order.
