Sony Xperia M2 Earpiece Replacement

Written By: ZFix

Comments: 3

Difficulty

Very difficult

Steps

Time Required

20 - 30 minutes

Introduction

How to disassemble the phone and change the Earpiece.

Please SUBSCRIBE to my channel ツ

Tools

Step 1

Warm the Back Cover. You can use a hairdryer.
Be careful, the Cover is plastic.
Use a small suction cup and plastic tools for separating the Rear panel.
Before installing the new cover, you must clean the phone from the old adhesive tape and install a new one if your spare part has come without double sided adhesive tape.

One battery

One camra lance back

Prince Kushwah - 07/04/17

Step 2

Disconnect the Battery Cable.
The battery is stuck to the phone fame. Use the white tape to remove it.
Li-Polymer Battery, 2230 mAh
Part number: LIS1551ERPC
Please SUBSCRIBE to my channel ツ

если первая разборка, отклеивается очень сложно и я бы советовал нагреть модуль до 70-76, на сепараторе. тогда аккумулятор отклеится легче. =)

Владимир Гусев - 06/04/17

I see the regular M2 has a large identification sticker. On the M2 Aqua (or at least the one I have) the sticker is shorter, so it’s pretty easy to short out the battery flex contacts against the metal shield located just above the battery connector on the motherboard. Once shorted, the battery seems to go into some sort of “protection mode” and the phone wont boot unless you plug it into a charger first.

Luis Alejandro Araúz -

Step 3

Remove the SIM and the memory cards.
Remove x4 T5 Torx Corner screws & x2 T5 Torx Screws on the Board

Step 4

Disconnect one by one:
Touchscreen flex cable
Proximity sensor flex cable
Power on, Volume buttons cable
SIM & Micro SD flex cable
Coaxial antenna cable

Step 5

Disconnect the LCD Display flex cable. The connector is on the other side of the board, under the Power/Volume buttons flex cable connector.

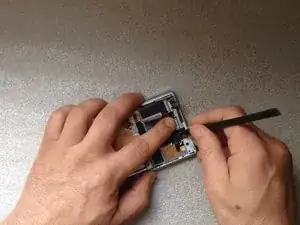

Put one plastic spudger between the Logic board and the Main frame.
