Sony Xperia TL Camera Replacement

Written By: Adam Giniger
  • Comments: 0
Sony Xperia TL Camera Replacement

Difficulty

Moderate

Steps

7

Time Required

4 minutes

Introduction

I will teach you how to reach the camera and replace it.

  1. RXVNRmYMfPVMO2Ob
    RXVNRmYMfPVMO2Ob
    K3AoqvyQtBiaNyR3
    GX2C3DVFWKHswCyT

    • Use the plastic opening tool to pry the top plastic section off.

  2. GFD1wQvYBwALncCu
    GFD1wQvYBwALncCu
    h6KYYtQnos5hoEFu

    • Use the plastic opening tool to pry the bottom plastic section off.

  3. v1BwHhmyOcNbapJ1
    v1BwHhmyOcNbapJ1
    ffMWUOZ26WdBnweI
    qgZfDBO1DREBryqc

    • Remove the four 5mm screws.

    • Use the plastic opening tool to pry off the back.

  4. rFEAK2bJiXYknUWO
    rFEAK2bJiXYknUWO
    LwsqMMv4S4MQ4VSF
    DFrxg1LJ2SMqXV2a

    • Use the plastic opening tool to detach the ribbon running across the battery.

    • Use the plastic opening tool to detach the ribbon connecting the battery to the motherboard.

  5. XXdbPhBlYJPf4dFr
    XXdbPhBlYJPf4dFr
    SUIiYNP3NmHxYUFa

    • Use the plastic opening tool to unlatch the cord's ends off the motherboard and loud speaker module. The cord can be located on the right side of the phone.

  6. SS125d4BnMyPYxGW
    SS125d4BnMyPYxGW
    sT4UEAwklTFoJqWv
    MBPwDeW6L2YQJYKT

    • Use the Phillips #00 to remove the 3 5mm screws.

    • Lift the plastic cover off.

    • Use the plastic opening tool to pry the motherboard out of the phone shell.

  7. gNewgIVeKAd2UDDV
    gNewgIVeKAd2UDDV
    33eyXSVZ2pfkTvVw
    E2SFwMnBoMIcAUXw

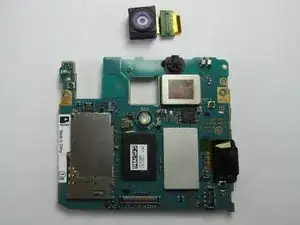

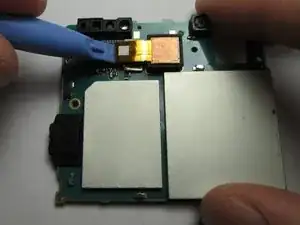

    • 'Use the plastic opening tool to detach the camera from the motherboard.'

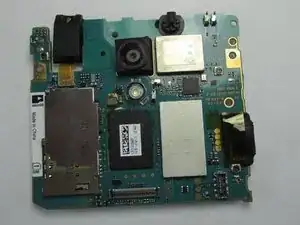

    • The camera attachment is on the back of the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
