Sony Xperia TL Display Assembly Replacement

Written By: Adam Giniger
  • Comments: 0
Sony Xperia TL Display Assembly Replacement

Difficulty

Moderate

Steps

10

Time Required

5 minutes

Introduction

I will teach the guide reader how to access this piece and to replace it, it must be purchased.

  1. RXVNRmYMfPVMO2Ob
    RXVNRmYMfPVMO2Ob
    K3AoqvyQtBiaNyR3
    GX2C3DVFWKHswCyT

    • Use the plastic opening tool to pry the top plastic section off.

  2. GFD1wQvYBwALncCu
    GFD1wQvYBwALncCu
    h6KYYtQnos5hoEFu

    • Use the plastic opening tool to pry the bottom plastic section off.

  3. v1BwHhmyOcNbapJ1
    v1BwHhmyOcNbapJ1
    ffMWUOZ26WdBnweI
    qgZfDBO1DREBryqc

    • Remove the four 5mm screws.

    • Use the plastic opening tool to pry off the back.

  4. iIEsmYNOHyVJG3uH
    iIEsmYNOHyVJG3uH
    QPBjGoK3C3IcBM62
    lb2ehcnoZAMEqUFC

    • Use the plastic opening tool to remove the loud speaker module.

  5. rFEAK2bJiXYknUWO
    rFEAK2bJiXYknUWO
    LwsqMMv4S4MQ4VSF
    DFrxg1LJ2SMqXV2a

    • Use the plastic opening tool to detach the ribbon running across the battery.

    • Use the plastic opening tool to detach the ribbon connecting the battery to the motherboard.

  6. 6XviqoG1GMOOOlD2
    6XviqoG1GMOOOlD2
    yGujTc1DLXB4WLMN
    2RcESJxxfg4UBFNr

    • Unhook the 2 connections between the harness and phone shell.

    • Using the plastic opening tool, pry the harness up and remove it.

    • There is an adhesive on the bottom half of the battery harness.

  7. mqi4gJo5HckiSB2K

    • The final step is taking the entire harness off of the phone.

  8. SS125d4BnMyPYxGW
    SS125d4BnMyPYxGW
    sT4UEAwklTFoJqWv
    MBPwDeW6L2YQJYKT

    • Use the Phillips #00 to remove the 3 5mm screws.

    • Lift the plastic cover off.

    • Use the plastic opening tool to pry the motherboard out of the phone shell.

  9. REacVvmD6MKZhFGo

    • Use the plastic opening tool to detach the ear piece speaker.

    • Avoid majorly bending the tiny metal hooks holding the ear piece in.

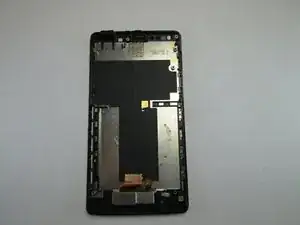

  10. PKwcEkxxTwhWkpLe

    • Once every single piece is removed from the main screen/digitizer this will be the only remaining piece. Nothing else can be removed. If you need to replace your screen this entire piece must be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
