Sony Xperia Z Display Assembly Replacement

Written By: ZFix

Comments: 56

Sony Xperia Z Display Assembly Replacement

Difficulty

Very difficult

Steps

Time Required

40 - 50 minutes

Introduction

Also known as Xperia Z LT36i, Xperia C6603, Xperia C6602, Xperia Z LTE, Xperia Z HSPA+

How to change broken, not working Digitizer or Display.

This procedure is very hard. You must have experience to do this.

Please SUBSCRIBE to my channel ツ

Tools

Parts

Sony Xperia Z Rear Cover Adhesive

Step 1

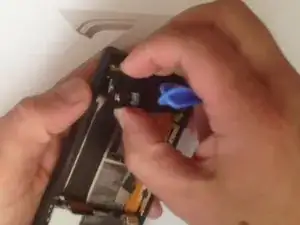

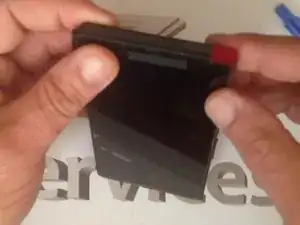

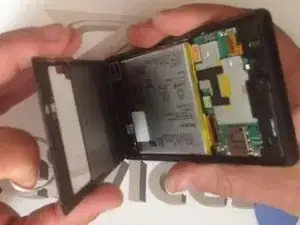

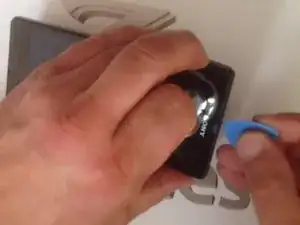

Warm the Battery cover before disassemble it.

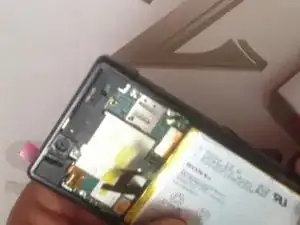

Step 3

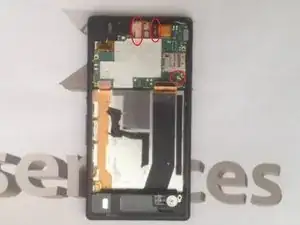

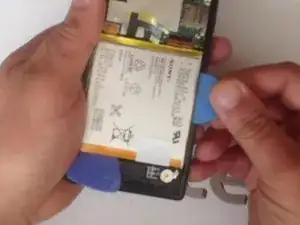

Unscrew 4x screws and disconnect 3x flex cables in case to free the mother board.

Step 4

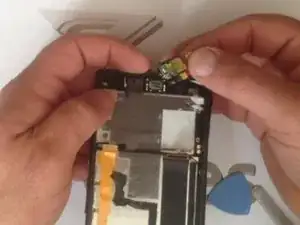

This are: main Camera, front Camera and antenna wire Flex cable.

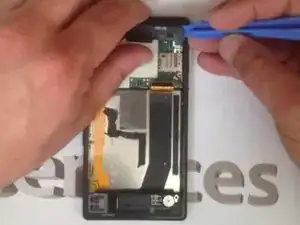

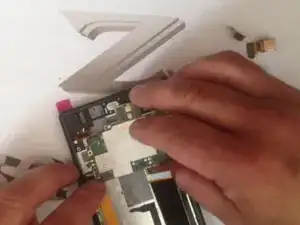

Now we can remove the Motherboard.

Step 5

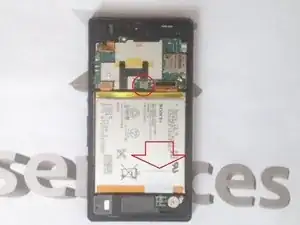

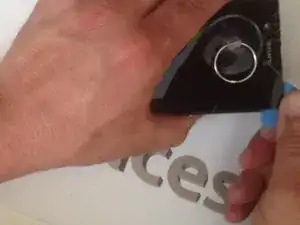

The Headphone connector and the Ringer / Cover / Signal Antenna module.

Step 6

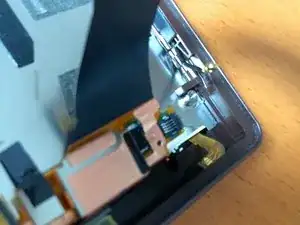

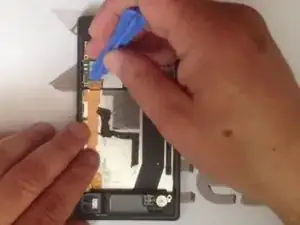

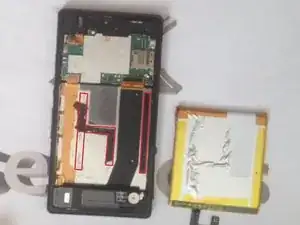

Disconnect the LCD light flex cable by lifting up the black plastic and removing the flex cable from the right side and we are ready to go.

Thats not the cable for the homebuttons its for the LCD screen

cedricjprahl - 31/08/15

You are right. I will correct it.

ZFix - 31/08/15

Step 7

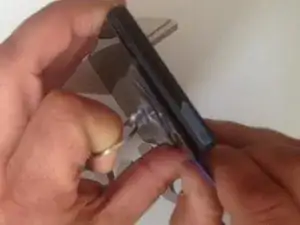

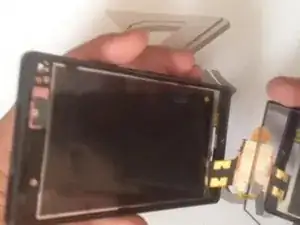

Warm the Touch screen before you start to disassemble it.

Step 9

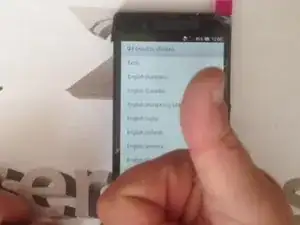

All's well, that ends well. :)
.
Did you do it successfully?
Please SUBSCRIBE to my channel ツ

Conclusion

To reassemble your device, follow these instructions in reverse order.
