Sony Xperia Z3 Dual Battery Replacement

Written By: Sophia
  • Comments: 3
Sony Xperia Z3 Dual Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

Sony Xperia Z3 battery is non-removable. When you encountered the problem with battery, it's a little complex to replace.

  1. 5y3wEcgnDUNsY3eD
    5y3wEcgnDUNsY3eD
    cK6CpGhOfOMuBHDM

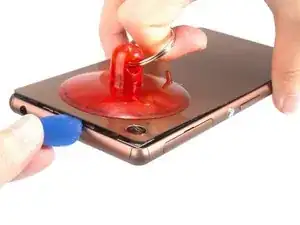

    • Heat the back cover to soften the adhesive sticker.

    • Use the suction cup to open a gap from top side or bottom side.

  2. rt51o6obohfVlC4E
    rt51o6obohfVlC4E
    TAHOfj3pyOEcUXQr
    AiyQIQZFvcsXVMRU

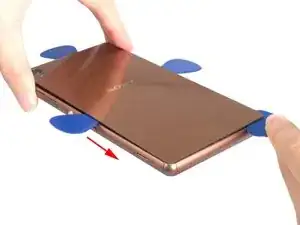

    • Insert into the guitar pick and slide to cut the sticker.

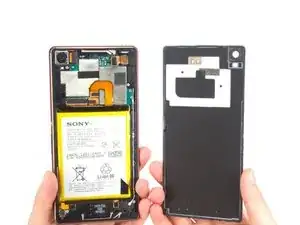

    • Remove the back cover.

    In step 5 where it says that there is adhesive on the battery, my adhesive was actually joining the battery to the back plate making this step quite difficult. I had to focus the heat on the backplate right where the battery was and then use a long lever to separate the battery from the back plate.

    Seb Carroll -

  3. MTHRFqiCJ6gPXmHp

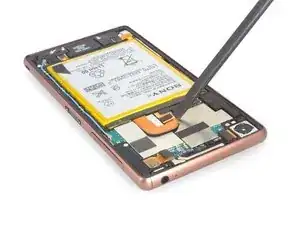

    • Release battery flex connector carefully to avoid breaking the pins.

  4. JBsMvQMhKPTk6UtJ

    • Get free that sticker which for fastening the battery.

  5. wiM2TH2aaMHtfqgh

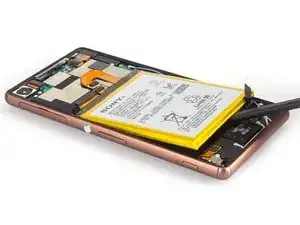

    • Pry up with a little effort because there is adhesive under the battery though not so strong.

  6. 6J2ITS5ivSpGWIFa

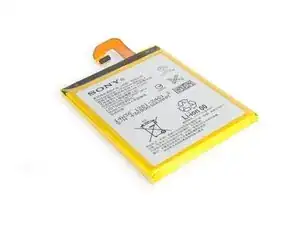

    • That's Sony Xperia Z3 Dual 3100mAh battery.

    • When you finished to replace battery and ready to assemble the phone, you need a piece of new back cover adhesive sticker because it's disposable and the old one can't use any more.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Sophia

Member since: 25/03/14

43837 Reputation

2 comments

Do you happen to know if the Z3 battery will also fit the Z3v i cant seem to find a replacement specifically for the Z3v

Victor Aguirre -

Just finished this guide thank you!

Seb Carroll -
