Sony Xperia Z3 Dual Loudspeaker Assembly Replacement

Written By: Sophia
  • Comments: 2
Sony Xperia Z3 Dual Loudspeaker Assembly Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

This is the replace guide for Sony Xperia Z3 Dual as well as Z3 loudspeaker assembly.

  1. GYOZLEu2UpxBxDjs
    GYOZLEu2UpxBxDjs
    KVOwnwt4SRu3TCdZ
    H3JLKfogIwGH2c2o

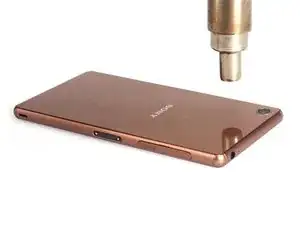

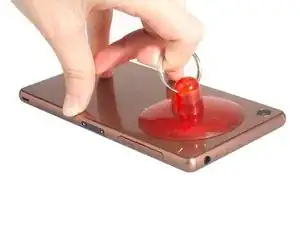

    • Heat to soften back cover sticker.

    • Place the suction cup and try to open a gap.

    • Insert the guitar pick into the gap.

  2. oT1aXjZnEJoHJGsW
    oT1aXjZnEJoHJGsW
    RsVEthjoUKMcBKjZ

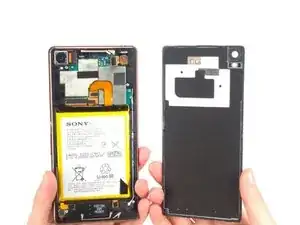

    • Slide the guitar pick to cut the sticker and remove the back cover.

  3. HjkqfRMjLSQ3fYDX
    HjkqfRMjLSQ3fYDX
    RDhxMrx6dvCpuhgw
    kUD3w6B6WBVvdsQf

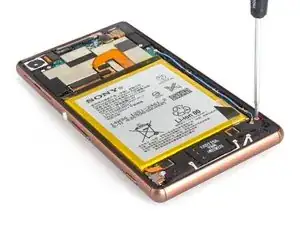

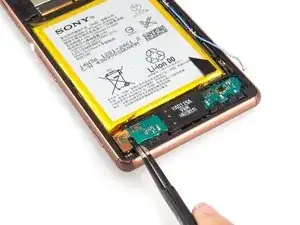

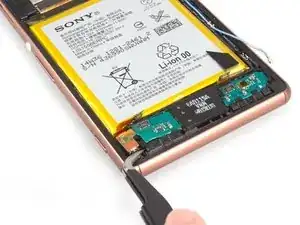

    • Remove two screws by Philips screwdriver.

    • Release all the connectors connecting with loudspeaker assembly.

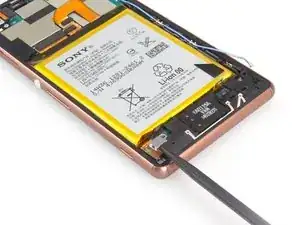

    • Remove the small vibrator securing bracket.

  4. ocVtPyVKwXOEohd5
    ocVtPyVKwXOEohd5
    5tFRj2x3UEZNtJAD
    fXYDYu26DGPMVSqC

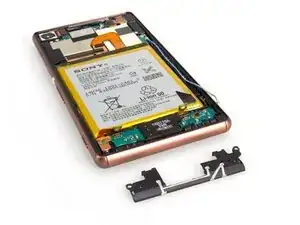

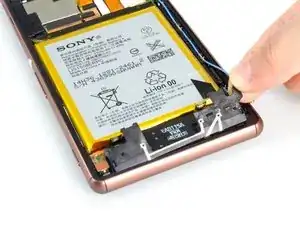

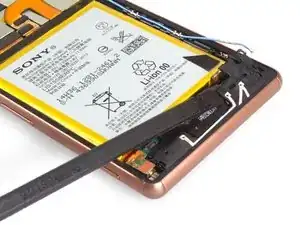

    • Remove the securing cover. It's thin and weak, please be careful when remove it.

  5. rQxVH5mnVJEZvICS
    rQxVH5mnVJEZvICS
    NdJxxFJK6ZwtLJnG
    htJANpJNoLKXHVAY

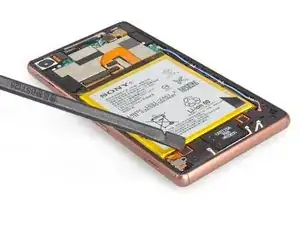

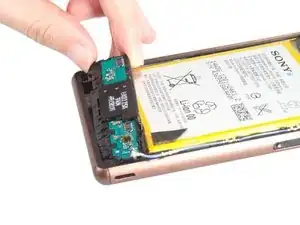

    • Pry up the assembly and carry it out.

  6. 3dHIUVkybOgXApPy
    3dHIUVkybOgXApPy
    ujclOS6WCXyE54If

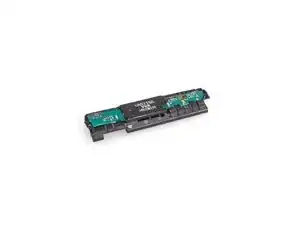

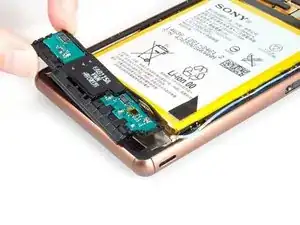

    • Remove the loudspeaker assembly finally. Be careful with the flex beside assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
