Sony Xperia Z3 Dual Magnetic Charging Flex Replacement

Written By: Sophia
  • Comments: 0
Sony Xperia Z3 Dual Magnetic Charging Flex Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

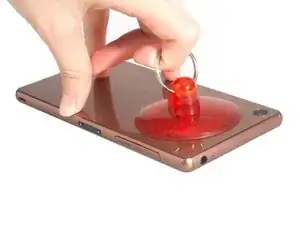

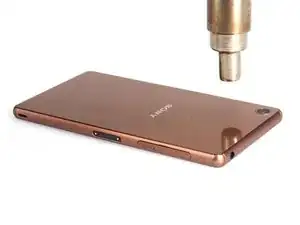

  1. D1Ps4ZuGFRahWDIy
    D1Ps4ZuGFRahWDIy
    yZuKJajg3EWwRnmY
    iQTRTeURNCxPyaTm

    • Heat to soften back cover sticker.

    • Place the suction cup and drag to open a gap.

    • Insert into guitar pick.

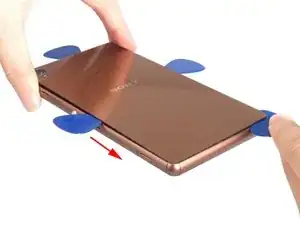

  2. AC1NMitGBMec1UWW
    AC1NMitGBMec1UWW
    rSBBSgMPpMLxEfGI

    • Slide the guitar pick to cut the sticker and remove the back cover.

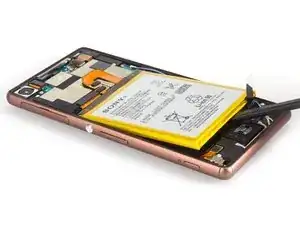

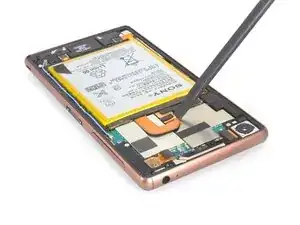

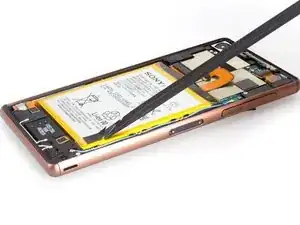

  3. IkAeWAow3CIdcAY1
    IkAeWAow3CIdcAY1
    KbskSDPWyZUYYNTk
    4wINIJUtBLS2Ryh1

    • Remove battery.

  4. rPannkJc3XUxFftv

    • Remove signal flex.

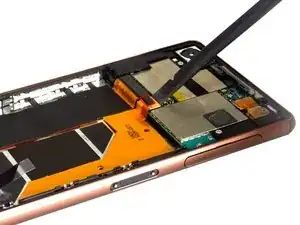

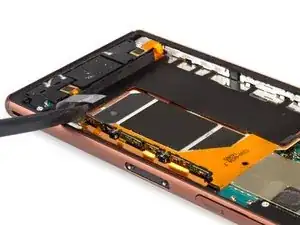

  5. JMXJHJB5x1aRCIy2
    JMXJHJB5x1aRCIy2
    ReuxAK2eG2iieIXV
    fYy2Y1GHyAJEAGd4

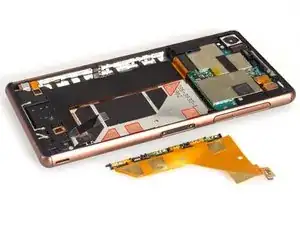

    • Release magnetic charging flex with the motherboard.

    • Get free the flex securing bracket from the hidden keys of mid frame.

    • Remove the flex from several square stickers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
