Introduction
Tools
Parts
-

                  -

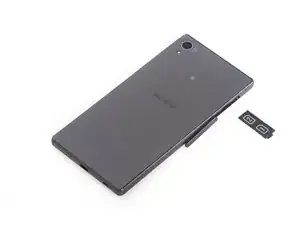

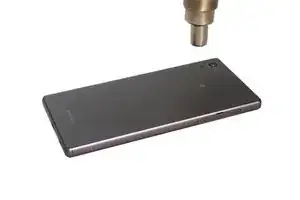

            Heat the back cover to soften the adhesive sticker.
-

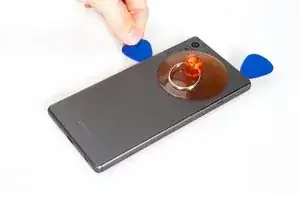

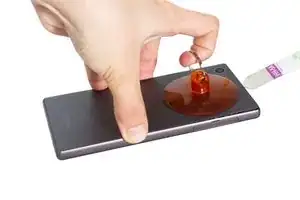

            Place the suction cup and inert metal opening tool to open a gap from top side.

-

-

                  -

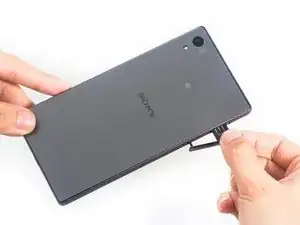

            Insert the guitar pick and slide it to cut the adhesive sticker underneath.
-

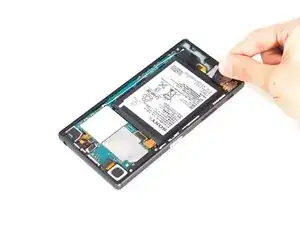

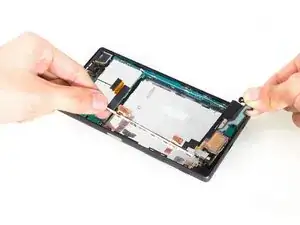

            Remove back cover.

-

-

                  -

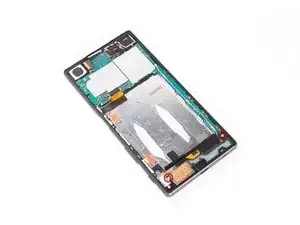

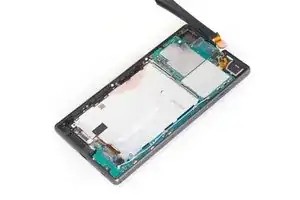

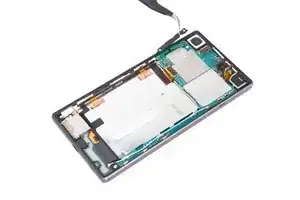

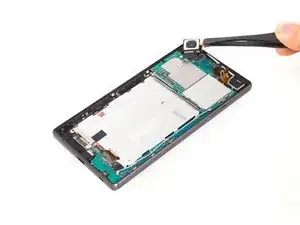

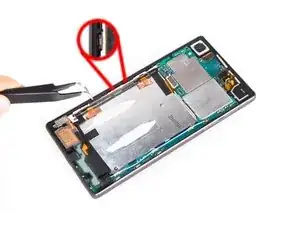

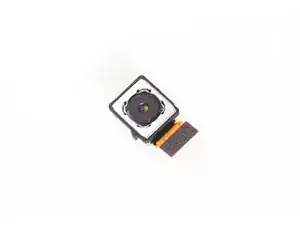

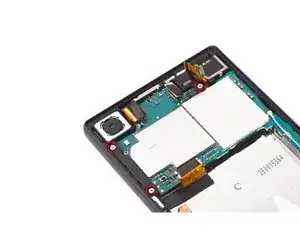

            Release rear camera connector, front camera connector, audio jack flex connector and main flex connector on the motherboard and remove the screws there.
-

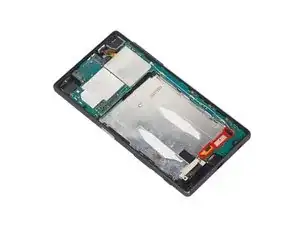

            Take away the plastic bracket.

-

-

                  -

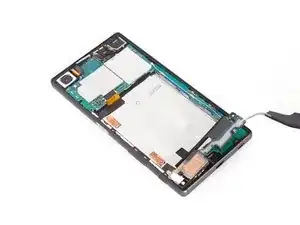

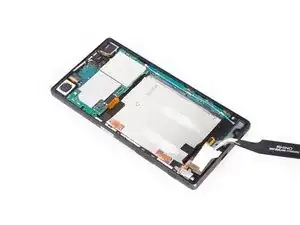

            Remove metal cover securing loudspeaker and twist off screws.
-

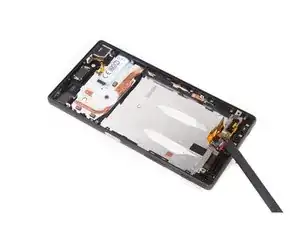

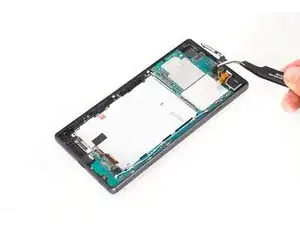

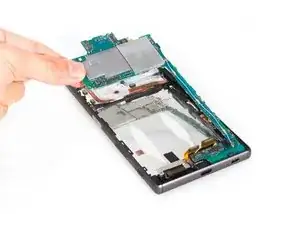

            Pry up and loosen the bottom side of main flex assembly.

-

-

                  -

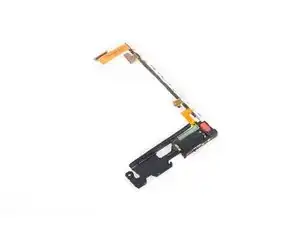

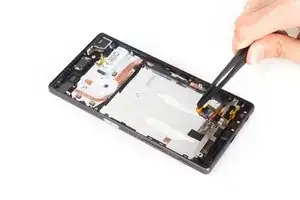

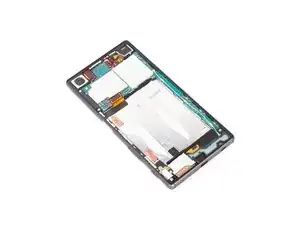

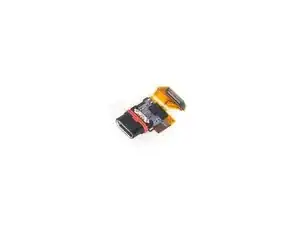

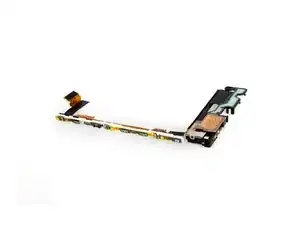

            Remove main flex. ( Attention: the fingerprint sensor connector is here, be careful to loosen it)

-


                            Conclusion

                          To reassemble your device, follow these instructions in reverse order.
