Introduction

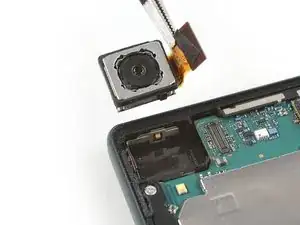

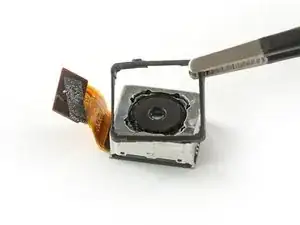

Use this guide to remove or replace a broken or defective rear camera in a Sony Xperia Z5.
If you do not replace the adhesive seals when reassembling, your device will function normally, but will most likely lose its water-protection.
You’ll need replacement adhesive to reattach components when reassembling the device.
Tools
Parts
-

                  -
            Before you begin, switch off your phone.
-

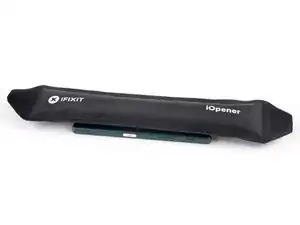

            Apply a heated iOpener to the edges on the back of the phone to loosen the adhesive beneath the rear glass. Apply the iOpener for at least two minutes.

-

-

                  -

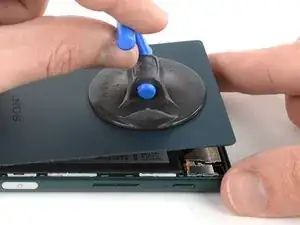

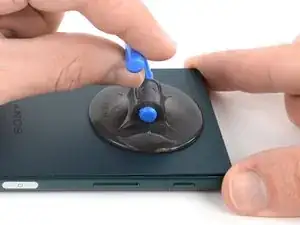

            Secure a suction handle to the bottom of the rear glass, as close to the edge as possible.
-
            Pull up the suction handle to generate a gap.
-

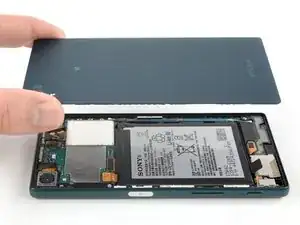

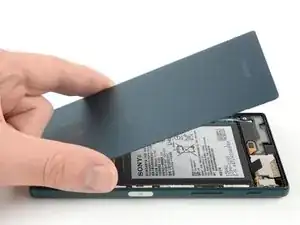

            Insert an opening pick into the gap to further separate the rear glass from the phone assembly.

-

To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
