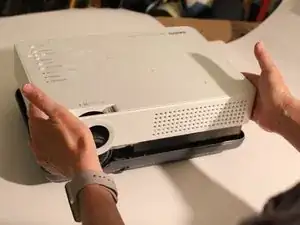

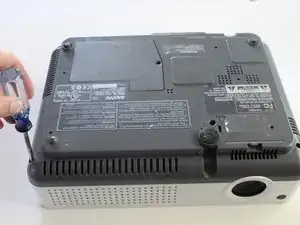

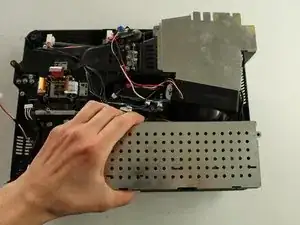

            Place the projector upside-down to access the screws on the bottom.
-

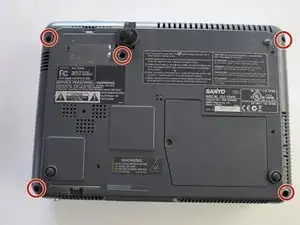

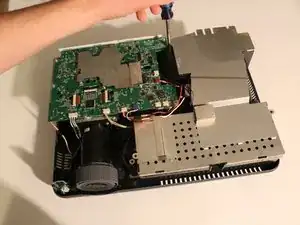

            Remove five 9mm long screws with a Phillips 1 screwdriver.

-

-

                  -

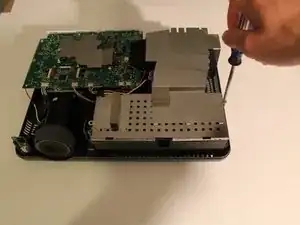

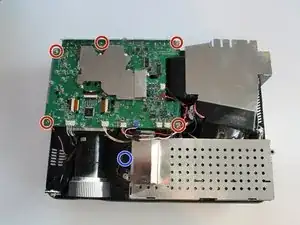

            Remove five 9mm screws with a Phillips 1 screwdriver
-

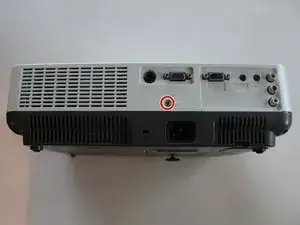

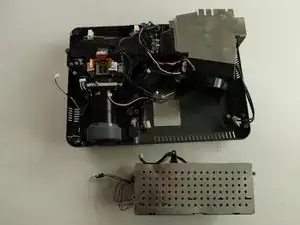

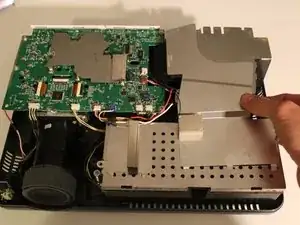

            Remove one 11mm screws with a Phillips one screwdriver

-

-

                  -

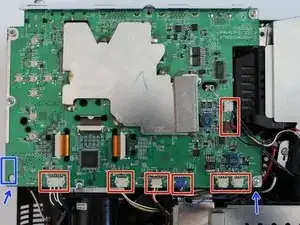

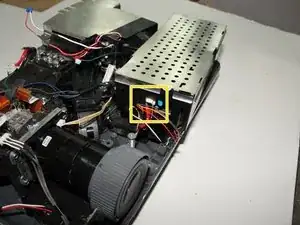

            Remove all clips from mother board.
-
            There are two additional clips underneath the mother board that need to be disconnected as well.

-

-

                  -

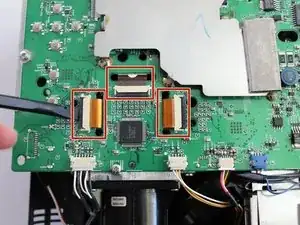

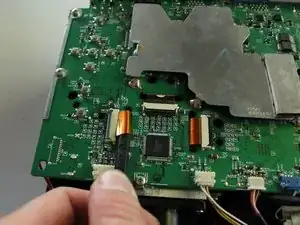

            To remove the ribbon cables, lift up on the black hinge with a fingernail or the tip of your spudger.
-

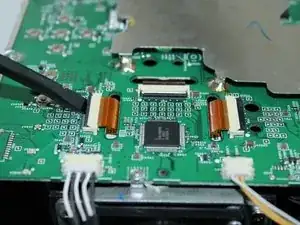

            Now, use a spudger or a barbecue skewer to lift the cable out.

-

-

                  -

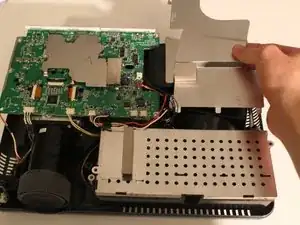

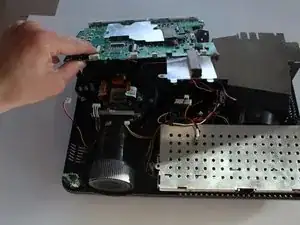

            Lift the board up slowly, making sure there are no snagged cables.
-

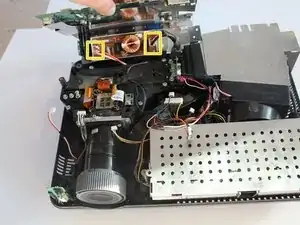

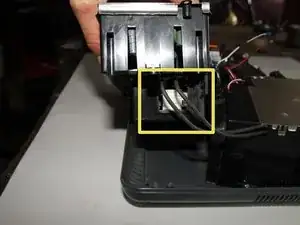

            Unplug the two power cables coming into the board.
-

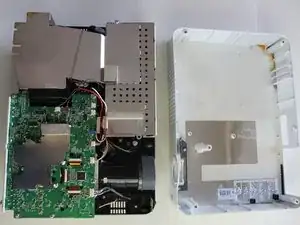

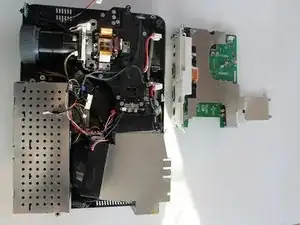

            Remove the mother board from the device.

-

To reassemble your device, follow these instructions in reverse order.
