Sprint Sanyo RL-4920 Vibrator Motor Replacement

Flip the phone over so that the screen is facing down.

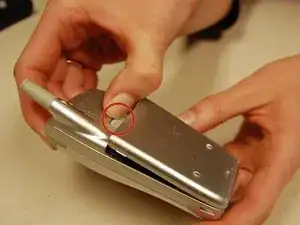

Push the gray lever up towards the top of the phone.

Pull up on the battery pack and completely separate it from the phone.

Locate the five screws around the back casing.

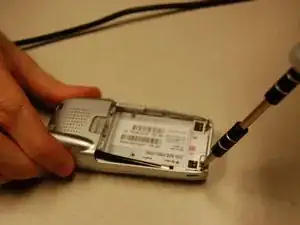

Use a three-prong screw bit to remove all five screws.

Use the plastic opening tool and slide it around the phone to pull apart the front and back casing.

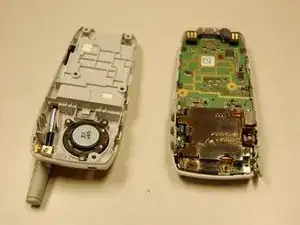

Separate the two cases.

Use the plastic opening tool to remove the motherboard from the front case.

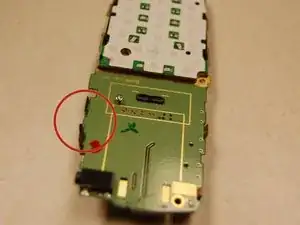

Locate the 4 white clips of the dispaly.

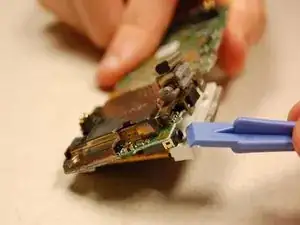

Using the plastic opening tool, pull the white clips of the display away from the printed circuit board to unclip display.

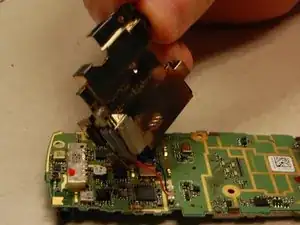

Grasp the display on both sides and carefully pull the display off of the printed circuit board.

Using the plastic opening tool, carefully remove the yellow film covering the display connector.

Use a Phillips-head screw bit to remove the screw under the yellow film

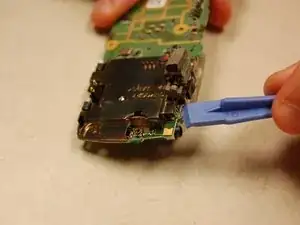

Use the spudger tool to pry the latches ways from the circuit board

Detach the metal casing from the circuit board

Once the metal casing is removed from the circuit board take it and locate the vibrator motor on the top side of the casing

Use the spudger tool to gently pry the vibrator motor out of its protective shell

With the vibrator motor completely removed, you can now replace it with a new one
