Swagtron T3 Wheel Replacement

Difficulty

Moderate

Steps

4

Time Required

10 minutes

Introduction

Replace one of your Swagtron's wheels with this guide. To avoid electric shock, discharge the capacitors using the capacitor discharge tool before making any changes to your Swagtron.

  1. FWAOE2xiNFVLLIi1
    FWAOE2xiNFVLLIi1
    jvbDLM5lbaXmck1t

    • Make sure the hoverboard is completely powered off and unplugged from any outlets.

    • Flip the Swagtron so that the footpads are facing the ground.

    • Unscrew the sixteen 9.4 mm Phillips #1 machine screws on the side of the Swagtron that is now facing upwards.

  2. sYkHNu5RQoCNHKYU
    sYkHNu5RQoCNHKYU
    cGvRBM2EutCXxMI3
    a3fgvPX1IRZoIFse

    • Be careful with the small blue capacitors indicated by the orange box. There are many of these capacitors in the device.

    • Slowly lift the backside cover.

    • Both sides lift up the same way, but the motherboard is under one side and the battery is under the other.

    • Detach the four cables connected to the cover by pinching the connector clips and pulling the cables out:

    • Three cables on the motherboard side.

    • Two red cables with white connectors and one white cable with a white connector.

    • One yellow cable with a black connector on the battery side.

    • After detachment, you should be able to completely remove the backside cover.

  3. oe62GJtC1ZTLWydY

    • Unscrew the six 11.2 mm Phillips machine screws from the inside of the wheel.

    • You many need to spray a thin lubricant, such as PB Blaster, directly onto each of the six screw points to loosen them.

  4. qPqFhOhspRCNEKVn
    qPqFhOhspRCNEKVn
    3oKa4f2QPv1GbDec

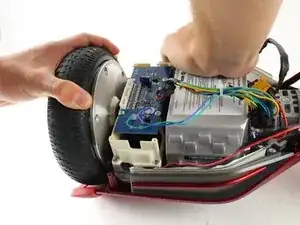

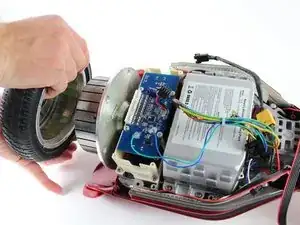

    • Pull the wheel off of its base.

    • The wheel has a strong magnetic connection to the base, so separating the them will require a lot of force.

Conclusion

To reassemble your device, follow these instructions in reverse order.
