Swann Doorphone Video Intercom Doorbell Replacement

Written By: Joseph Kelemen
  • Comments: 1
Swann Doorphone Video Intercom Doorbell Replacement

Difficulty

Moderate

Steps

11

Time Required

15 - 20 minutes

Introduction

This guide can be used to help replace a broken or stuck Doorbell located on the outside camera on your Swann Doorphone Video Intercom.

  1. cvcq6rlmn2ZKFTDa
    cvcq6rlmn2ZKFTDa
    huQaD6my66sG2ueX
    Q1mXPda4WrdK2nU4

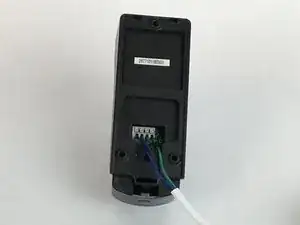

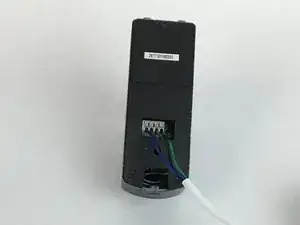

    • Flip the outdoor camera over so that the underside is facing up.

    • Remove the back cover by grabbing the sides of the camera and pulling towards your body.

  2. PIKmac44csy2mL2U
    PIKmac44csy2mL2U
    Ci3vrnNpGCLbxVUr

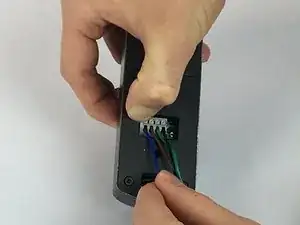

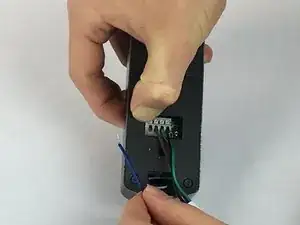

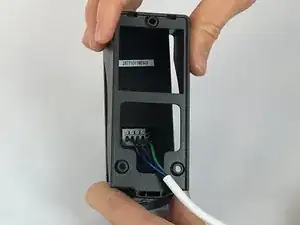

    • With the back cover of the outdoor camera off, press the first gray button, with blue wire underneath, down as shown in the picture.

    • While pressing the gray square button, remove the blue wire from the first opening under the button.

    • Be sure to remove the same color wire for the outdoor camera as was used for the indoor video intercom.

  3. rljNELCAkckNVcPN
    rljNELCAkckNVcPN
    FJeCkjOwsOdBluAS
    6GQeNN2c2kF6soxw

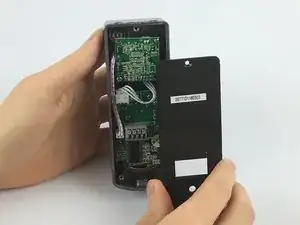

    • Remove the other wires using the same steps as the blue wire.

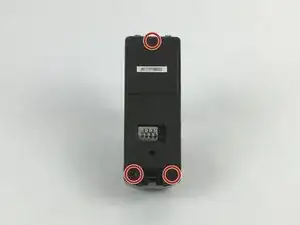

    • Using the JIS #0 screwdriver, remove the 2mm screws from the back plate.

    • Remove the back plate by pulling the plate away from the device.

  4. TdFAKburhjMsQVDR
    TdFAKburhjMsQVDR
    fO4pQySUfKbVc52p

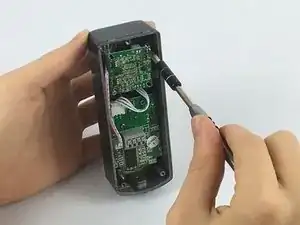

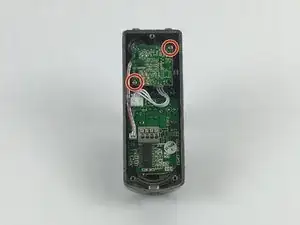

    • Using the JIS #0 screwdriver, remove the 1mm screws from behind the camera.

  5. hjIEpyTLvXABcMmZ
    hjIEpyTLvXABcMmZ
    JXQMjffAvATt6Ob4

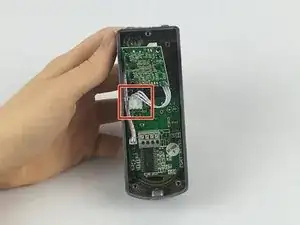

    • Using one of the tweezers from the Precision Tweezers Set, gently place them around the wire connector attached to the camera.

    • Pull slowly in the direction of the cables until the connector is no longer attached.

  6. XScc3EATdKN3PHBm
    XScc3EATdKN3PHBm
    YQVvFf6JGlvnQFW4

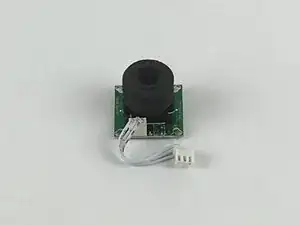

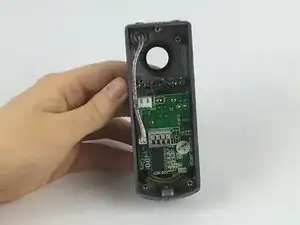

    • Remove the camera from the device.

  7. rcKMSab2hNO4ph2e
    rcKMSab2hNO4ph2e
    HQwKT6wkGwPDga61
    vAoNSSOYRF33NbyY

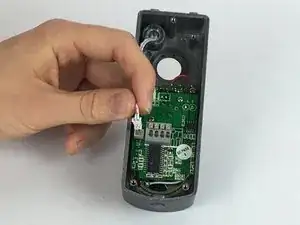

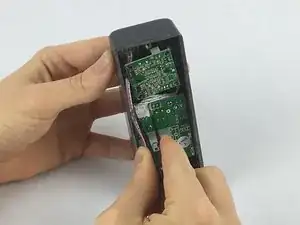

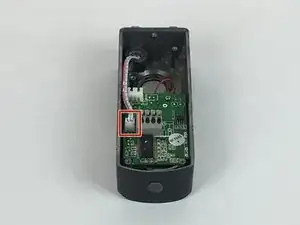

    • Using your fingers, take hold of the wire connector attached to the main board

    • Pull slowly towards your body until the connector is no longer attached.

  8. rhJt514ZfGvB2aLc
    rhJt514ZfGvB2aLc
    REr2WSdKGkC1XPKP
    cnwt6WdraWZeuida

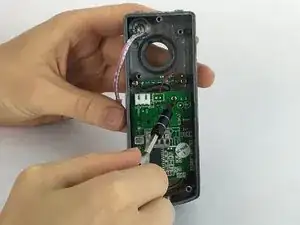

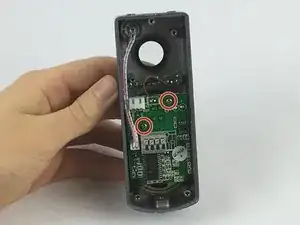

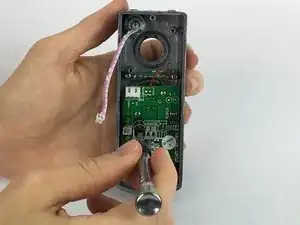

    • Using the JIS #0 screwdriver, remove the 2 mm screws diagonal from each other from the main board.

  9. cUVyjfQxcEBQINS5
    cUVyjfQxcEBQINS5
    jHKcgPPKMR1JDLOW

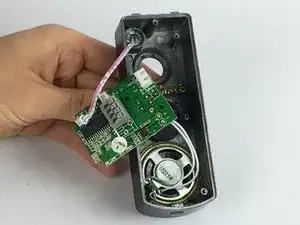

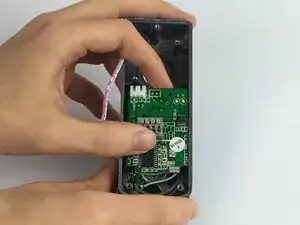

    • Gently pull the main board away from the inside of the device and leave to the side.

    • The main board will still be attached to the device by a remaining set of wires, but do not need to be removed.

  10. I1slOleOcppyLttJ
    I1slOleOcppyLttJ
    ZvWU4sHT6Q6hBvpj
    Z3RJsSbdj1bDS4sm

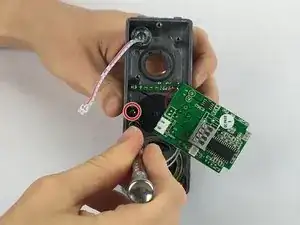

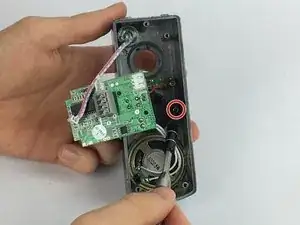

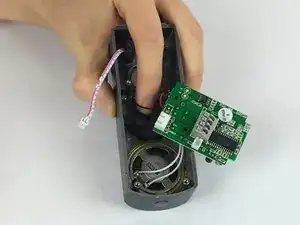

    • Using the JIS #0 screwdriver, remove the 1mm screws from each side of the doorbell spring-loaded cover-plate

    • While removing the second screw, hold down the cover-plate with your index finger to prevent the plate from springing out.

  11. UZNyyrs1wcVSgsQM
    UZNyyrs1wcVSgsQM
    FgIq3tl45dhdwf5J
    2FaAqil2foGqjY1u

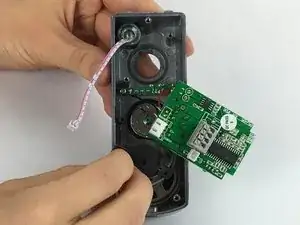

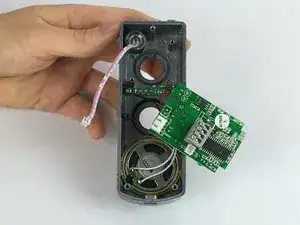

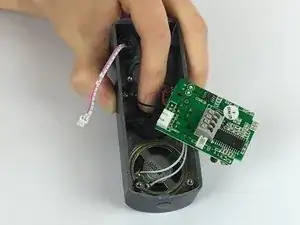

    • Remove the black circular doorbell cover-plate.

    • Remove the metal circular doorbell button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
