Swann Doorphone Video Intercom Microphone Replacement

Written By: Emily Stenke
  • Comments: 0
Swann Doorphone Video Intercom Microphone Replacement

Difficulty

Moderate

Steps

4

Time Required

15 minutes

Introduction

This guide will provide instructions on how to replace the microphone to get sound back to your Swann Doorphone Video Intercom.

  1. XsR3kwSGxW1s3RXT
    XsR3kwSGxW1s3RXT
    1jBZcWXECR2EHtxN
    m2NRCGcOHQEfvIWy

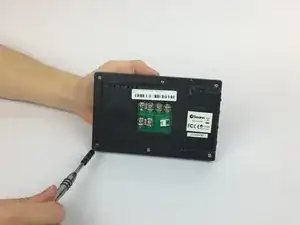

    • Flip the monitor of the Swann Doorphone Video Intercom over so that the underside is facing up.

    • Remove the six 2 mm corner screws from the back plate of the monitor using the JIS #0 screwdriver.

  2. cGxTISyEFCNNyy4O
    cGxTISyEFCNNyy4O
    aRENCrSkNi6UrEVl

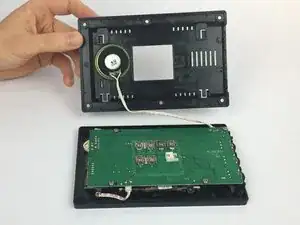

    • Once the screws are removed, grip the black back plate of the monitor and remove from the monitor.

    • The back plate will still be connected to the monitor with a cord of wires that should not be removed.

  3. 4SQusmGOpYNoPavM
    4SQusmGOpYNoPavM
    iK1sXJOHrFDSdY2e
    XWlfljQJLIXOmZAA

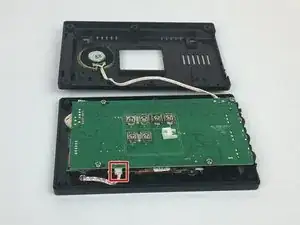

    • Using the precision tweezers, grab the sides of the white connector at the bottom of the green board.

    • Pull the white connector towards you to disconnect the board.

  4. K6BtNSDnQEdeJhUi
    K6BtNSDnQEdeJhUi
    mKFHLJGr5PeswG6L
    teCxnmuipsMKtyap

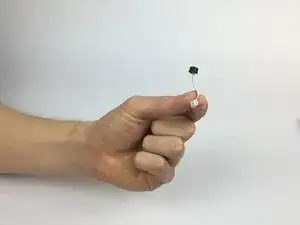

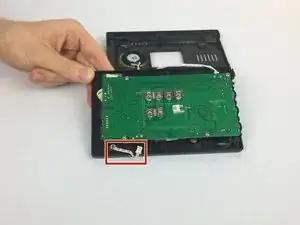

    • Grip the other end of the white connector cable towards the base of the black microphone.

    • Pull gently towards your body to remove the microphone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
