Introduction
Removing the TRS-80 Color Computer's motherboard.
Tools
-

                  -
            Flip the computer over.
-
            Remove the two 24.1mm Phillips screws near the front of the case.
-
            Remove the five 33.0 mm Phillips screws towards the back of the case.

-

-

                  -
            Near the motherboard, gently pull the keyboard ribbon cable until it becomes free.
-

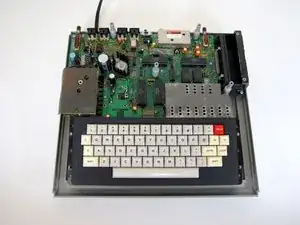

            Lift the keyboard out of the case.

-

-

                  -

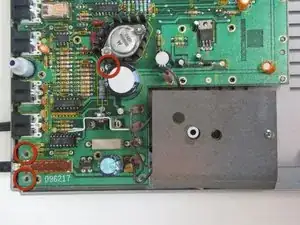

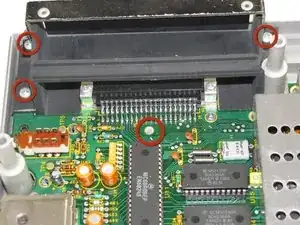

            Remove the nine 15.24 mm Phillips screws securing the motherboard in place.
-
            When removing the spring door, make sure to keep the door closed.

-

-

                  -

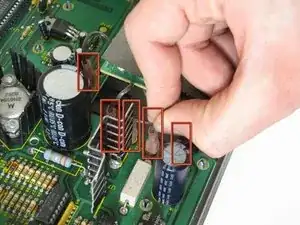

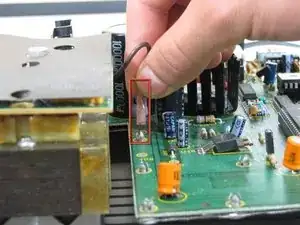

            Remove the 5 jumper cables from the motherboard.
-

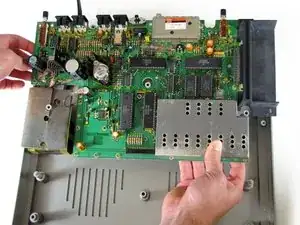

            Once the jumper cables lift the motherboard up gently; it should lift out easily.

-


                            Conclusion

                          To reassemble your device, follow these instructions in reverse order.
