Tatung TAC-6G Heating Element Replacement

Written By: John David Mitchell

Comments: 7

Tatung TAC-6G Heating Element Replacement

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

The rice cooker contains a heating element responsible for heating and cooking the rice while it is turned on. In this guide we will show how to expose the heating element and replace it.

Tools

64 Bit Driver Kit

Step 1

Lift the lid and bowl from top of the device
Be sure device is not plugged in before beginning replacement of heating element

Step 2

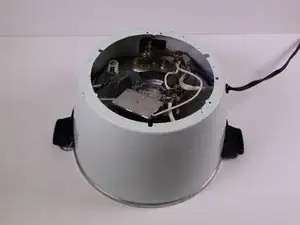

Turn the bowl upside down so that the three legs point upwards

Step 3

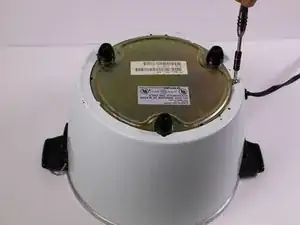

Remove the one 7 mm Phillips screw from the side of the brass panel.

Step 4

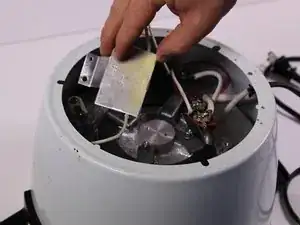

Remove the 6mm Phillips screw that holds the stainless plate.

Step 5

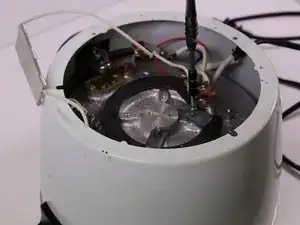

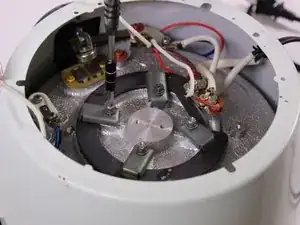

Remove all four of the 15mm Phillips screws from all four of the brackets that hold the heating element in place

Step 6

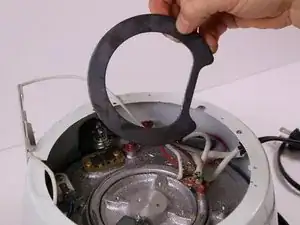

Using your hands, remove the heating plate that is on top of heating element.

Step 7

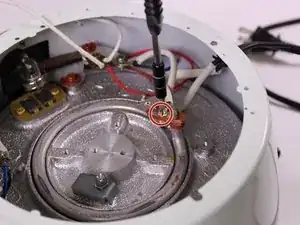

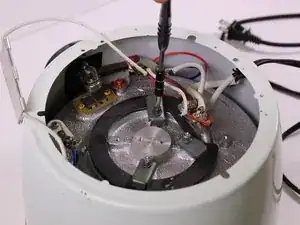

Remove the 7mm Phillips screw that holds the white wire connected to the heating element.

Step 8

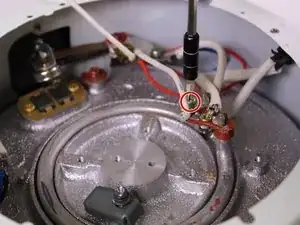

Remove the 7mm Phillips screw that holds the white & maroon wires connected to the heating element.

Step 9

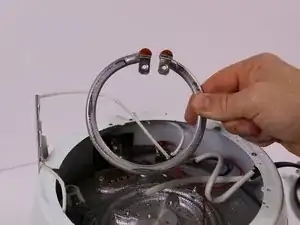

Using, your hands, take out the heating element and replace it with a new one.

where can I buy this heating element? Thanks.

Tze Moh Yeo - 05/07/20

Conclusion

To reassemble your device, follow these instructions in reverse order.
