Timex T132 "iMac" Alarm Clock Battery Replacement

Written By: Tyler Price
  • Comments: 0
Timex T132 "iMac" Alarm Clock Battery Replacement

Difficulty

Easy

Steps

3

Time Required

1 - 5 minutes

Introduction

Use this guide to replace the dead battery on your Timex T132 "iMac" alarm clock.

  1. icXVFoACCwtKtwVw

    • To prevent any injury, unplug the power cord from the outlet so the device is powered off.

    • Hold the clock so it is upside down. You should be able to view its caution labels.

    • Wedge the small tip plastic opening tool between the battery cover and the edge of its slot.

    • Firmly push against the battery cover (away from its outer edge) until it slides off of the base clock.

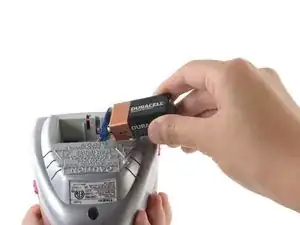

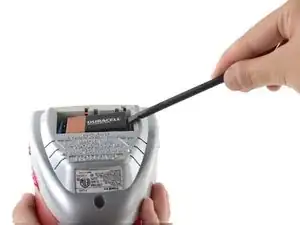

  2. yny2JLHNXohjeLRf
    yny2JLHNXohjeLRf
    yfEUj2HthSHGeKMf
    JvP1GIQYKnacnGAj

    • Rotate the device so the clock's display is facing away from you.

    • Use the flat end of the spudger to pry out the battery.

    • Once fully lifted, grab the end of the battery and pull out the rest of the battery.

    • Do not remove the battery all the way because it is still connected. Doing so may result in damaging the power wires.

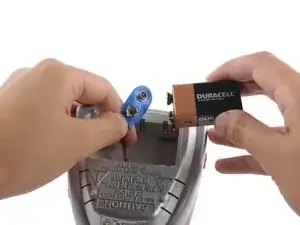

  3. cOCHtMLiFKjWacaI

    • Place the clock upside down on a flat surface.

    • Because the device is irregularly shaped, you may have to manually or externally balance it.

    • Grab the blue connector covering tab near the power wires and peel the snap connector off the battery terminals to disconnect it.

    • Do not pull out the snap connector and its wires because it is still connected to the device. Doing so may result in damaging the power wires.

    • Remove the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
