Introduction
This guide shows how to remove and replace the brake cable on the Toro Walk Behind Mower 21199HD 2018.
Tools
Parts
-

                  -
            While holding the deflector up and out of the way, lift the grass bag handle away from the mower to detach it.
-
            Remove the grass bag.

-

-

                  -

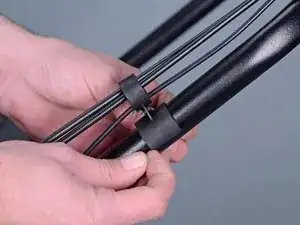

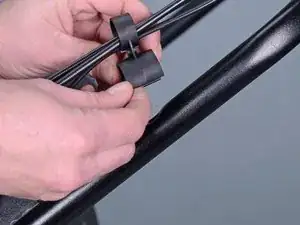

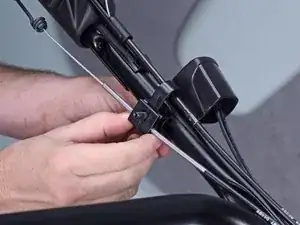

            Use your fingers and press up from the bottom to remove the plastic cable guide from the handle.

-

-

                  -

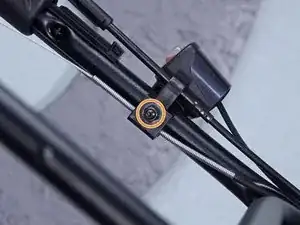

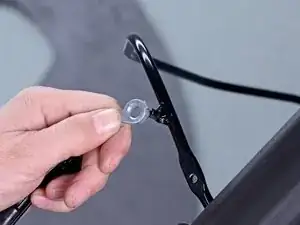

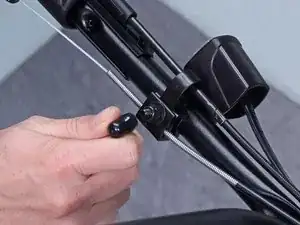

            Remove the black silicone cap covering the nut on the kill switch and upper cable guide assembly.

-

-

                  -

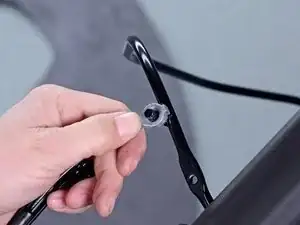

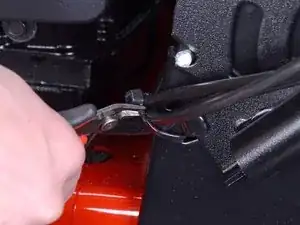

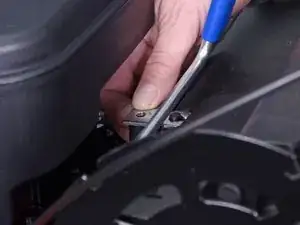

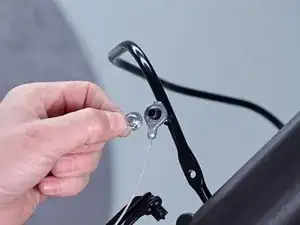

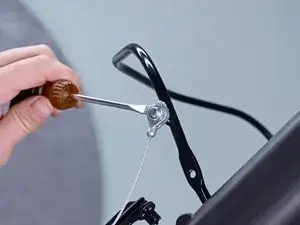

            Use a 7/16 inch socket or wrench to remove the nut securing the kill switch and upper cable guide assembly.

-

-

                  -

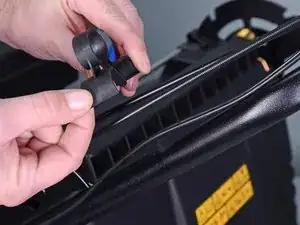

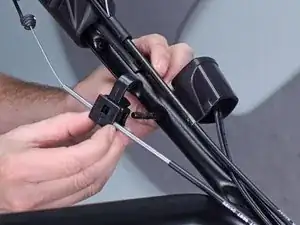

            Unclip and remove the upper cable guide from the handle.
-

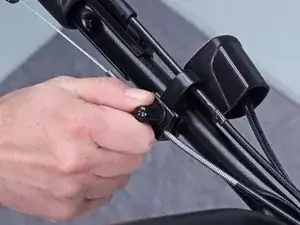

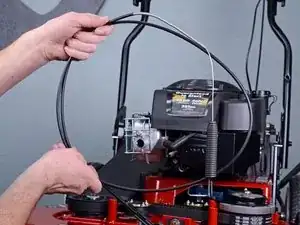

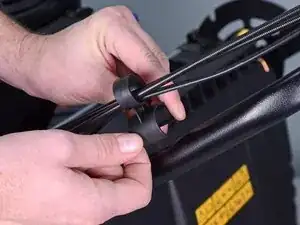

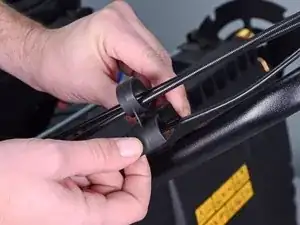

            Unroute the cables from the cable guide.

-

-

                  -

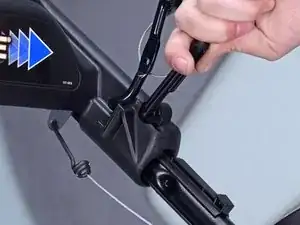

            Rotate the cable retainer arm 90˚ upwards, perpendicular to the handle, to unlock it.
-
            Pull the arm away from the handle to remove it.

-

-

                  -

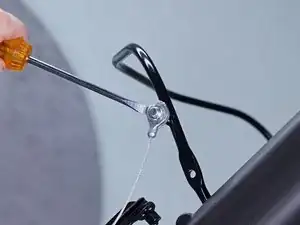

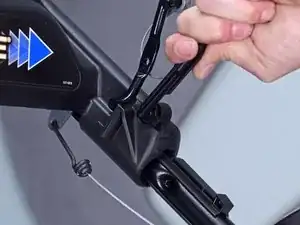

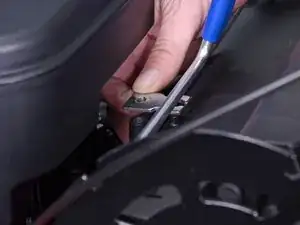

            Use a flathead screwdriver to pry off the single-use cap locking the brake cable to the brake handle.

-

-

                  -

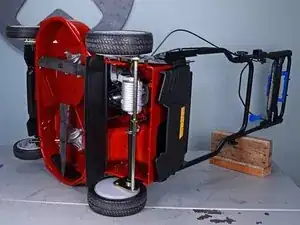

            Tilt the mower onto its side, propping the handle up with a block of wood.
-

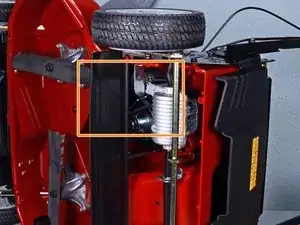

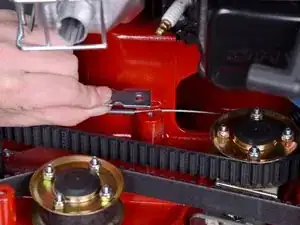

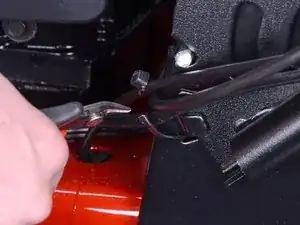

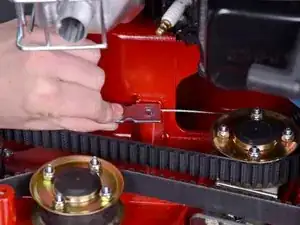

            Locate the end of the brake cable underneath the mower, in front of the driveline, and above the blade guard.

-

-

                  -

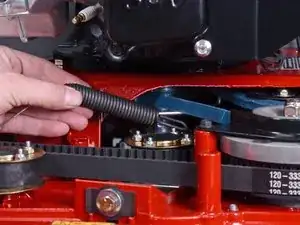

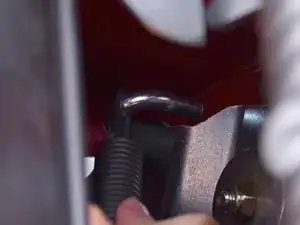

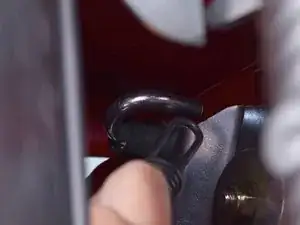

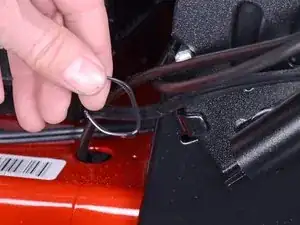

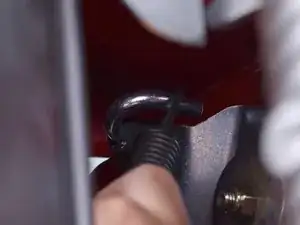

            Reach into the underside of the mower and grab the spring at the end of the brake cable.
-

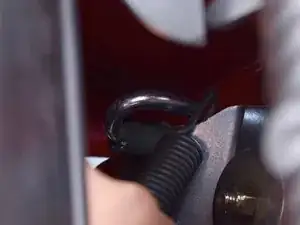

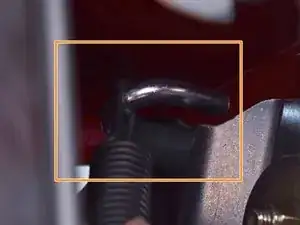

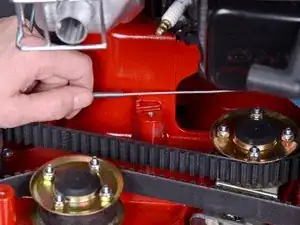

            Slide the spring towards the open end of the U-shaped post.

-

To reassemble your device, follow these instructions in reverse order.
