Toro Walk Behind Mowers 21199HD 2018 Right Blade Replacement

Written By: Carsten Frauenheim
  • Comments: 0
Toro Walk Behind Mowers 21199HD 2018 Right Blade Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

This guide shows how to remove and replace the right blade on the Toro Walk Behind Mower 21199HD 2018.

  1. OQZtGFtkEF4vBvq4
    OQZtGFtkEF4vBvq4
    dACKYQwkbMXRhRdD

    • Before you begin, ensure that the mower is powered down and cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

  2. 363TiR4yDRMrpZjN

    • Chock the rear wheels to prevent the mower from rolling during service.

    • If the blades are extremely dirty, you can clean them using the washout fitting so the bolts on the underside of the blade guard are accessible.

  3. r4FAZqANvZOFfbU6
    r4FAZqANvZOFfbU6
    mpPFBORU2IhiTIxL

    • Lift up the plastic deflector.

  4. xknjbavIsPvnHD5B
    xknjbavIsPvnHD5B
    UpQo4tj3Xwr5X56o
    HbnY1bo3DsGj4bmX

    • While holding the deflector up and out of the way, lift the grass bag handle away from the mower to detach it.

    • Remove the grass bag.

  5. MOvkCxgGKglPUiBb

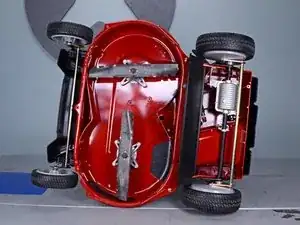

    • Tilt the mower onto its side so the blades are facing out.

    • This may require two people.

  6. viuBgNtieTXopHU1
    viuBgNtieTXopHU1
    iAaJkViMacD6mPJg

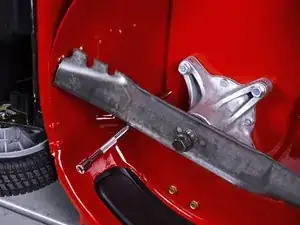

    • Use an impact driver with a 5/8-inch socket to remove the right blade bolt.

    • If necessary, brace the blade with a screwdriver or extension by placing it in the hole in the metal blade guard.

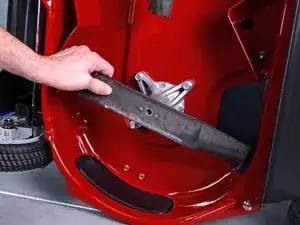

  7. Qs5cJcjBtTHeYkGs
    Qs5cJcjBtTHeYkGs
    QGTZnrIlBSYJCmgB

  8. O3AE33loLUNXkHCZ
    O3AE33loLUNXkHCZ
    kmh1eRTeYIXKjSTU

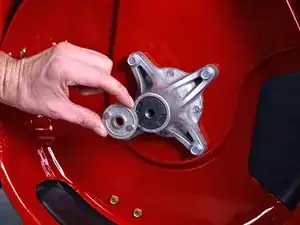

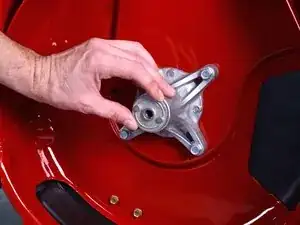

    • Remove the right blade key adapter.

Conclusion

To reassemble your device, follow these instructions in reverse order.
