Introduction
This guide shows how to remove and replace the right spindle on the Toro Walk Behind Mower 21199HD 2018.
Tools
Parts
-

                  -
            While holding the deflector up and out of the way, lift the grass bag handle away from the mower to detach it.
-
            Remove the grass bag.

-

-

                  -
            Use a 3/8-inch socket to remove the four bolts securing the belt guard:
-
            Three 1 inch-long recessed bolts
-
            One 1 1/2 inch-long bolt

-

-

                  -

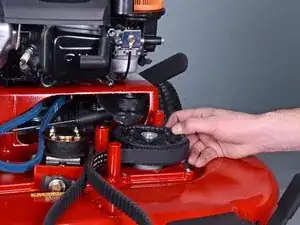

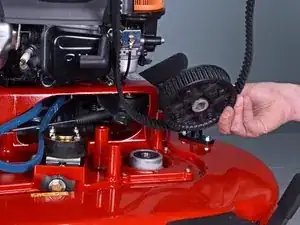

            Lift the belt up and over the left sprocket.
-
            Move the belt to the front of the mower, out of the way of the belt tensioner.
-

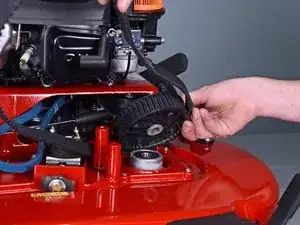

            Spin the left sprocket, with the blade attached underneath, until it is in a safe position, then place the belt on the sprocket.
-
            Spin both blades to ensure they don't touch during a 360˚ rotation.

-

-

                  -

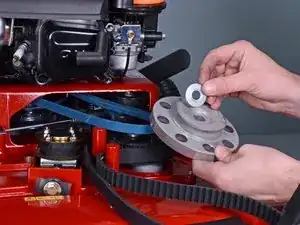

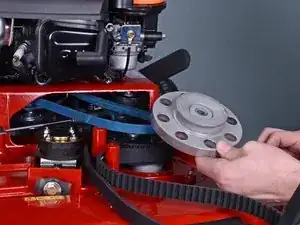

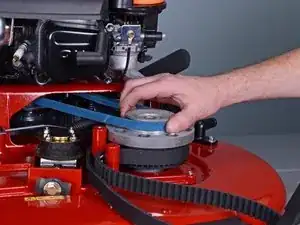

            Use an impact wrench with a 3/4 inch socket to remove the right sprocket bolt.
-

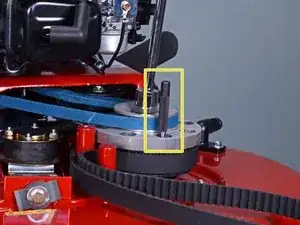

            If necessary, use a punch or screwdriver to lock the sprocket in place during removal, lining up the hole in the sprocket with the hole in the blade guard.

-

-

                  -
            Grabbing the spindle shaft from the bottom, lower it down through the spindle.
-

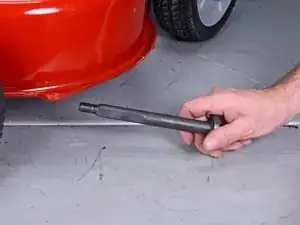

            Remove the spindle shaft from underneath the mower.

-

-

                  -
            Tilt the mower onto its side so the spindle assembly is facing out.
-

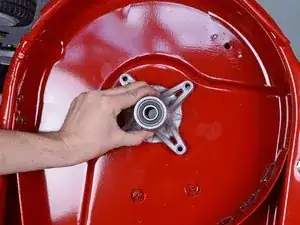

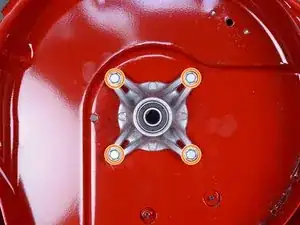

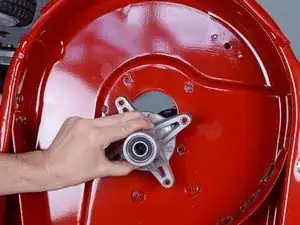

            Use a 1/2 inch socket to remove the four spindle bolts.

-

To reassemble your device, follow these instructions in reverse order.
