Toshiba CB35-C3300 Chromebook 2 Fan replacement

Written By: Jillian Thomas

Comments: 6

Toshiba CB35-C3300 Chromebook 2 Fan replacement

Difficulty

Moderate

Steps

Time Required

7 minutes

Introduction

To complete this guide you will need patience and to work with a steady, gentle hand.

Tools

Step 1

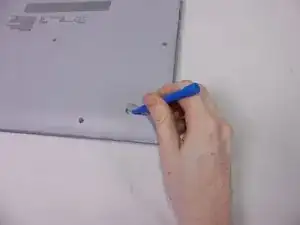

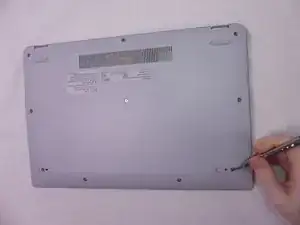

Remove the 2 rubber foot pads from the bottom (opposite the hinge) with the small Plastic Opening tool.

Step 2

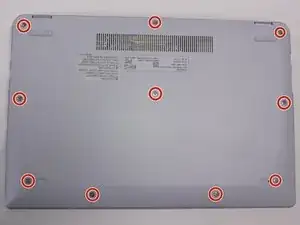

Remove the 10 7.1 mm screws using Phillips #1 screwdriver.

Step 3

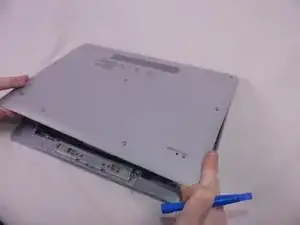

Loosen the back cover by using a plastic opening tool all the way around the device.
There are areas all along the sides of the device that help aid in this.
Be careful when prying, and go slow. The silver plastic frame around the dull gray plastic bottom is fragile and easily dented from prying pressure.

I have the UK model and I found Fascinating Captain’s method for removing the back cover to be simplicity itself:

https://www.youtube.com/watch?v=JcZ711cx...

Rob Butler -

Step 4

Remove the back cover by gently lifting up on one side of the device.
The easiest side to lift up on is the one with the removed rubber foot pads.

Step 5

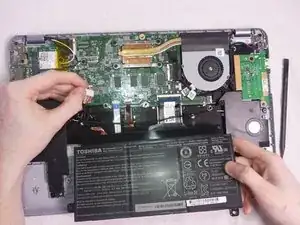

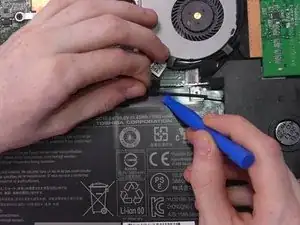

Remove the tape holding the speaker wire to the battery on both sides using a small opening tool.

Step 6

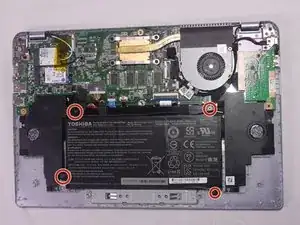

Remove the 4 Phillips 3.2 mm screws holding the battery in place, with the Phillips #1 screwdriver.

Step 7

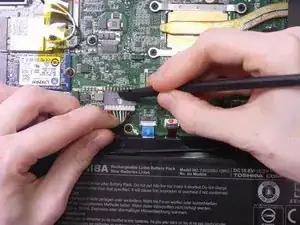

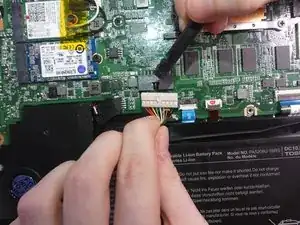

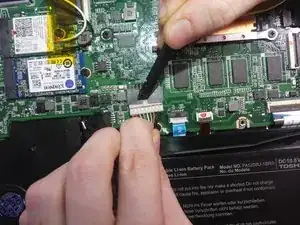

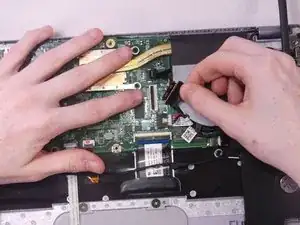

To disconnect the wire from the mother board, gently press down with the flat end of Spudger and pull on the wire.
Gently shaking the wire from left to right helps with the wire removal

Step 8

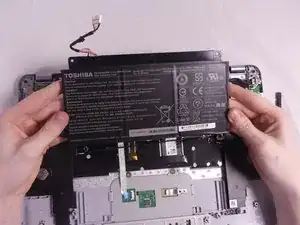

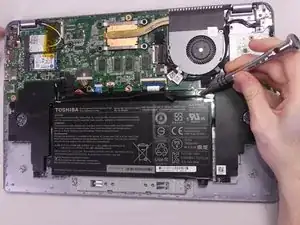

Remove the battery by gently pulling on the bottom corners.
Be careful to move the battery's wire under the speaker's wire.

Thank you AGAIN for your perfect HOW-TO Guide on Toshiba Battery Replacement!! Can you help me find a Replacement Keyboard for an ASUS Model W203A? I cannot even find a SINGLE ARTICLE on the Internet on this Model (no reviews, Asus, nothing). Thanks . Guy Rogers Attorney Jackson MS 601.941.6689

Guy Rogers - 13/04/21

Step 9

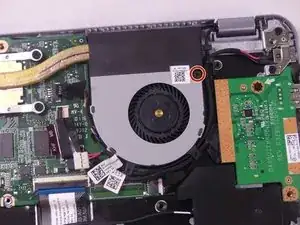

Locate the fan

Step 10

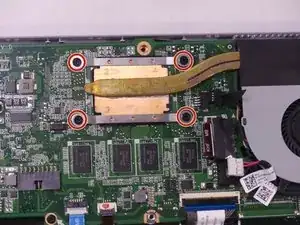

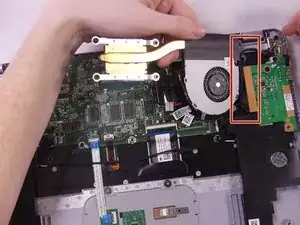

Unscrew the 4 Phillip screws using a Phillips # 1 Screwdriver.
These screws only loosen partially, they do not disconnect.

Step 11

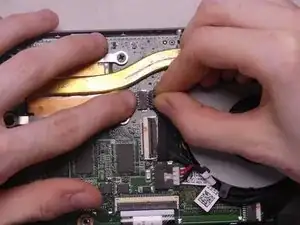

The top wire is the fan's wire. Remove it by pulling it from the motherboard.

Step 12

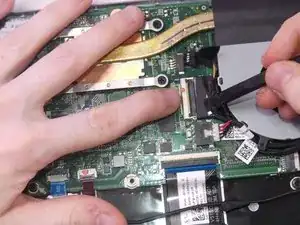

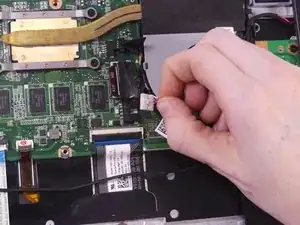

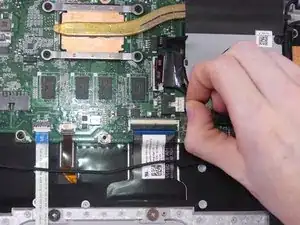

To remove the Wifi PCB wire lift up the hinged flap with your finger or with the aid of the spudger tool.
After the flap is lifted, pull the wire up out of the connector socket.

Step 13

Remove the headphone jack wire by pulling it out of the connector socket.

Step 14

Remove the Phillip 3.6 mm screw from the fan using a Phillips #1 screwdriver.

Step 15

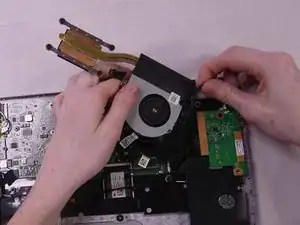

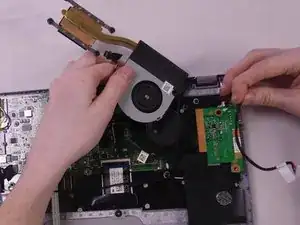

Lift up on the metal plate that hold the screws to start removing the fan.

Step 16

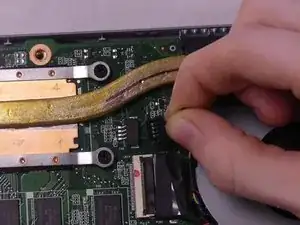

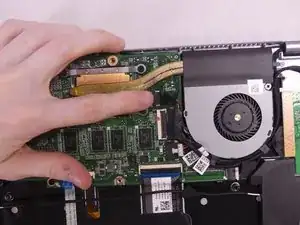

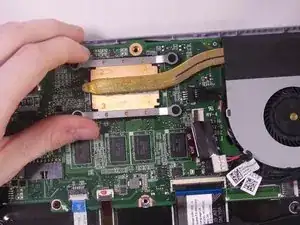

Once lifted, you will notice that there are two wires tucked under plastic tunnels on the right side of the fan. Remove these wires.
These wires require you to gently pull them out of there tunnel.
Once the wires are removed the fan should be removed entirely.

Conclusion

To reassemble your device, follow these instructions in reverse order.
