Toshiba CB35-C3300 Chromebook 2 Speakers

Remove the 2 rubber foot pads from the bottom (opposite the hinge) with the small Plastic Opening tool.

Remove the 10 7.1 mm screws using Phillips #1 screwdriver.

Loosen the back cover by using a plastic opening tool all the way around the device.

Remove the back cover by gently lifting up on one side of the device.

Remove the tape holding the speaker wire to the battery on both sides using a small opening tool.

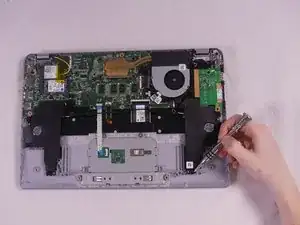

Remove the 4 Phillips 3.2 mm screws holding the battery in place, with the Phillips #1 screwdriver.

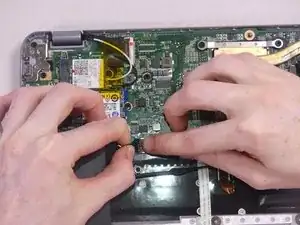

To disconnect the wire from the mother board, gently press down with the flat end of Spudger and pull on the wire.

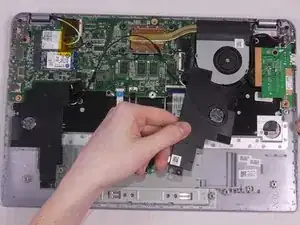

Remove the battery by gently pulling on the bottom corners.

Remove the 4 Phillip 6.3 mm screws from both the right and left speakers using Phllips 1 screwdriver.

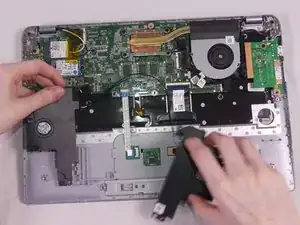

Gently remove wire from the motherboard by pulling it out of the connector socket.

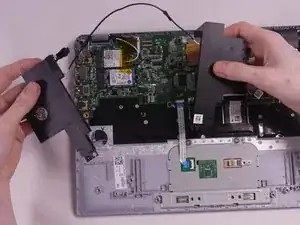

Remove the right and left speaker by lifting them up.
