Toshiba Portege R500 Keyboard Replacement

Written By: JayKoBa
  • Comments: 0
Toshiba Portege R500 Keyboard Replacement

Difficulty

Moderate

Steps

4

Time Required

20 minutes

Introduction

Guide to replace a Portege R500 Keyboard

  1. bUiFdR3g2NIX22Hy
    bUiFdR3g2NIX22Hy
    CZN1hWJmApri1kD2
    I5BmlBlcfckvyAW4

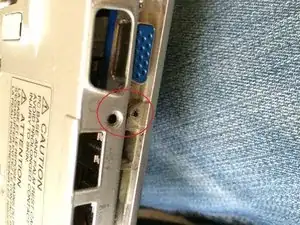

    • After removing the doors and battery, remove the screws securing the lower case.

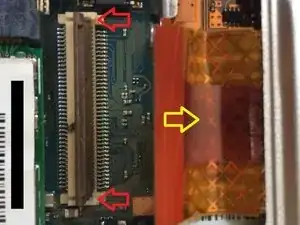

    • Disconnect the keyboard cable.

  2. ZFGG2wCAIwS1osu6
    ZFGG2wCAIwS1osu6
    ZqhIGBErxVxYNkWN

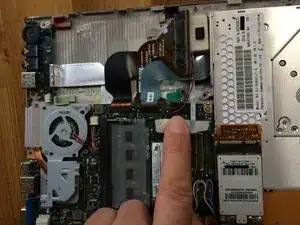

    • Disconnect the trackpad cable

  3. lepLjc2xy4xg2jBP
    lepLjc2xy4xg2jBP
    hAsOHCEsVRMrpZKn

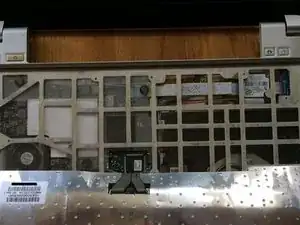

    • Heat the keyboard to loosen the adhesive.

    • Pry the keyboard up.

  4. fBkwqxKQxw3yIWSD

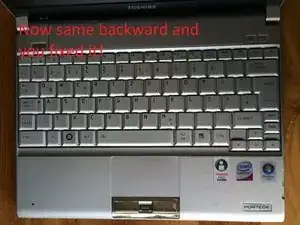

    • Follow the above steps in reverse to install a new keyboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
