Introduction
After diagnosing your Toshiba Satellite A105-S4074, should hard drive failure be imminent and replacement necessary, these easy to follow instructions will guide you through the process.
Tools
Parts
-
-
Slide both the left and right battery release tabs outwards away from center of the laptop.
-
While still holding the left release tab, slide the battery towards you using your right hand.
-
Fully remove the battery from the laptop.
-
-
-

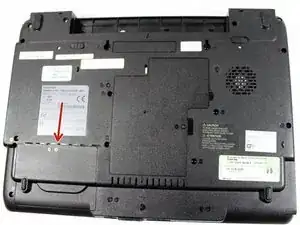

Turn the laptop around so that the battery slot is facing away from you, and locate the hard drive access panel in the lower left-hand corner.
-

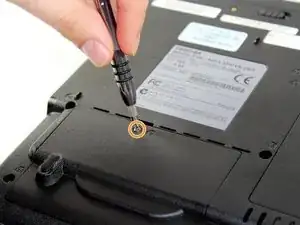

Locate the hard drive access panel in the lower left-hand corner on the bottom of the laptop, and loosen the 4.0 mm screw in the top center of the panel using the Phillips #1 screwdriver.
-

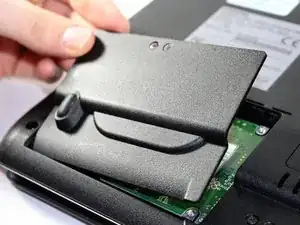

Carefully remove the panel with your fingers by lifting the edge at the indent.
-
-
-

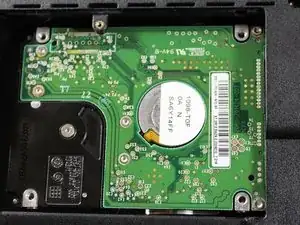

You should now have full access to the hard drive.
-

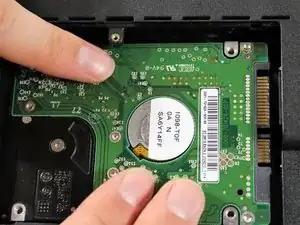

Slide the hard drive to the left.
-
Gently lift the hard drive from the side closest to you and remove it.
-
To reassemble your device after replacing the hard drive, follow these instructions in reverse order.
