Toshiba Satellite A65-S126 Keyboard Replacement

Written By: Aditya Varkhedi
  • Comments: 1
Toshiba Satellite A65-S126 Keyboard Replacement

Difficulty

Moderate

Steps

11

Time Required

No estimate

Introduction

This guide provides step by step instructions of how to replace a faulty keyboard.

  1. 1QfAeUOgO2tGtlmN

    • Flip the laptop over so the bottom is facing up.

    • Slide each of the three tabs on the bottom half of the assembly into the unlocked position.

  2. JOaFEw1WeT1hBYKt

    • Gently lift the battery out of the computer.

  3. Y5DIuAhlgHGVSCP4

    • Remove the single 3mm Phillips #00 screw that secures the wireless card cover.

  4. WuYup1Rn4r4ixCIt

    • Remove the WIFI module cover. It will pull right off.

  5. CeExGKNrHRw1RY2X
    CeExGKNrHRw1RY2X
    BrygOc43QQB4oxGn

    • Unplug the white and black wires from the WiFi module.

  6. tSEwXtqX6Vg2rCyW

    • Remove the twelve 8mm button head Phillips #00 B8 screws.

    • Remove the two 14 mm button head Phillips #00 B14 screws.

    • Remove the two 10 mm Phillips #00 battery compartment screws.

    • Remove the two 8 mm Phillips #00 screws.

  7. sDgDlvIY5MSwmOLI

    • Remove the seven 4mm flat Phillips #00 screws.

    • Remove the seven 20mm button head Phillips #00 screws.

  8. qEWUFnMioAG1sjRJ

    • Use the plastic opening tool to pry the two halves apart.

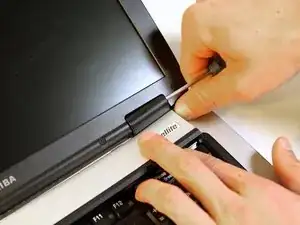

  9. H2yqmZuPb4lxcS11

    • Using a screw driver for assistance, pop open the plastic cover and snap it off of the hinges. Repeat on the opposite side.

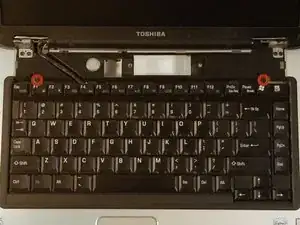

  10. dkmvSZHvUB4ZmHiZ

    • Remove the two 3mm Phillips #00 screws.

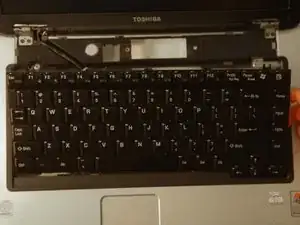

  11. mwvLpLW2huN1PAIN

    • Slide keyboard out and away from the upper assembly.

    WHAT is under the keyboard??? That is the most important part?

    Is there another memory slot location like on Dells?

    CCF Computing -

Conclusion

To reassemble your device, follow these instructions in reverse order.
